Water-Tight Roll Off Containers

Custom  Manufacturing's commitment to quality is best demonstrated by the durability of the product we manufacture.  We do not mass produce our products.  All Containers are built to our customers specification and satisfaction.  Our containers are AMERICAN MADE

     Integrity           Quality          Tradition         Superiority

Custom  Manufacturing's  Water-Tight Roll Off Containers are manufactured for collecting, storing and transporting a wide variety of wastes containing excess liquids.  Various capacities are available to solve waste handling application.

SUC52720SUC52905SUC53397







SUC52981SUC52102


SUC52457

Containers feature continuously welded interior seams, and gasketed rear door (3) sides ( 1" X 2" gasket) sealing by means of compression.  Rear door is also equipped with adjustable hinges and Ratchet assembly with "dead bolt" system located in the center of the rear door.
water_tight_drawing











   SIZE    A       B        C         D
20-YD      45"      58"      96"      23'6'
25-YD      55"      68"      96"      23'6"
30-YD      65"      78"      96"      23'6"
SPECIAL SIZES AND OPTIONS AVAILABLE UPON REQUEST

STANDARD FEATURES
  • Bulkhead and Door                         10 Ga. HR Sheet
  • Sidewall and Floors                        3/16" HR Plate
  • Gasket                                             1 X 2 Closed Cell Neoprene
  • Main Rails                                      6" X 2" X 1/4" Structural Tube
  • Solid Bar Rail Butts                       1 1/4" HR Plate
  • Cross-members                               On 18" Centers 3" Channel
  • Pull Plate and Pull Hook                Pull plate (3/4" HR plt) / Pull Hook ( 1 1/4" Grd a50 plt)
  • Gussets                                           (2) Gussets on every other cross-member
  • Rear Wheels                                   (2) 8" with 1 7/8" CR Axles
  • Axles and Hinges                           All axles and hinges have grease zerk fittings
  • Bulkhead Vertical Tube                  4 X 2 X 3/16 Full Height
  • Latch/Hinge                                    Adjustable, draw-tight w/ratchet operated wedge assembly,                                                                   insuring a complete seal
  • Primer                                             Phenolic Modified Industrial Primer
  • Paint Color                                      Per Customer Request


OPTIONAL ACCESSORIES

  • Front Wheels
  • Manifest Box (Aluminum / Water-Tight)
  • Placard Mounting Plates (4)
  • Rear Header Assembly (Splash Plate)
  • Front Header
  • Tarp Assembly
  • Adjustable Crossbows mounting sleeves
  • Roll Top Lid Assembly
  • Over Under Lid Assembly
  • Aluminum Roll Over Lid
  • Coal Tar Epoxy Interior

OPTIONAL UNDER-STRUCTURE

  • Dempster
  • Heil Dead Lift

Bul_Nose_and_RoolerAdjustable_HIngePull_Hook

 Bull Nose and Roller                   Adjustable Hinge                             Pull Hook

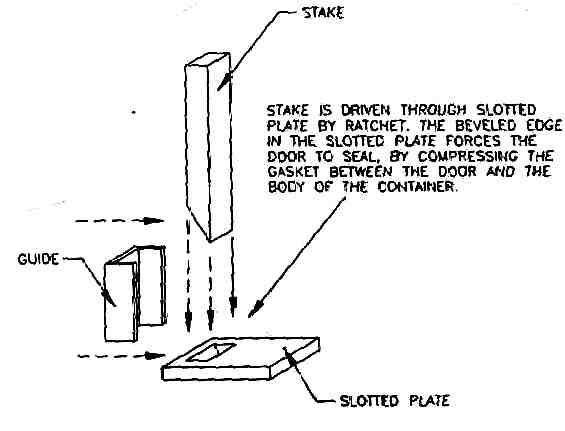

center_door_latch_assy

Adj_Latch_Cente




  Center Door Latch Assembly    Adjustable Latch and Center Dead Bolt
