Open Top Rectangular Roll Off Containers

Custom  Manufacturing's commitment to quality is best demonstrated by the durability of the product we manufacture.  We do not mass produce our products.  All Containers are built to our customers specification and satisfaction.  Our containers are AMERICAN made 100%


   Integrity              Quality             Tradition               Superiority

Custom  Manufacturing's  Open Top Rectangular Roll Off Containers are built from prime high quality steel plate and structural steel channel.  Our containers are built to provide durability and reliability.

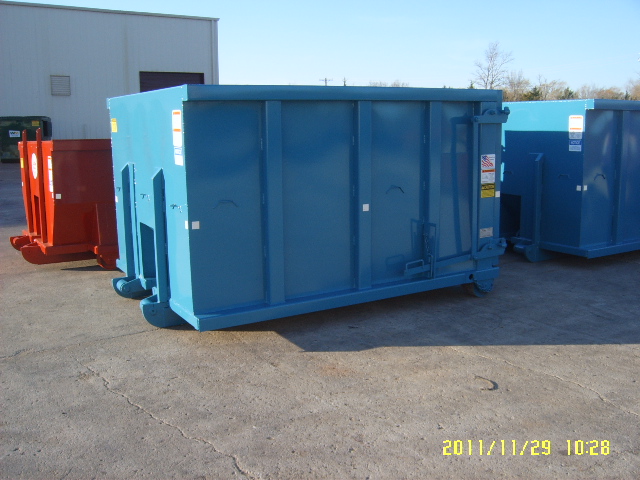

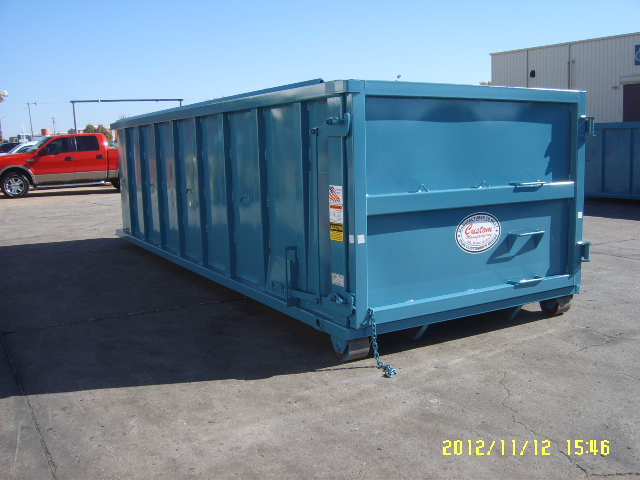

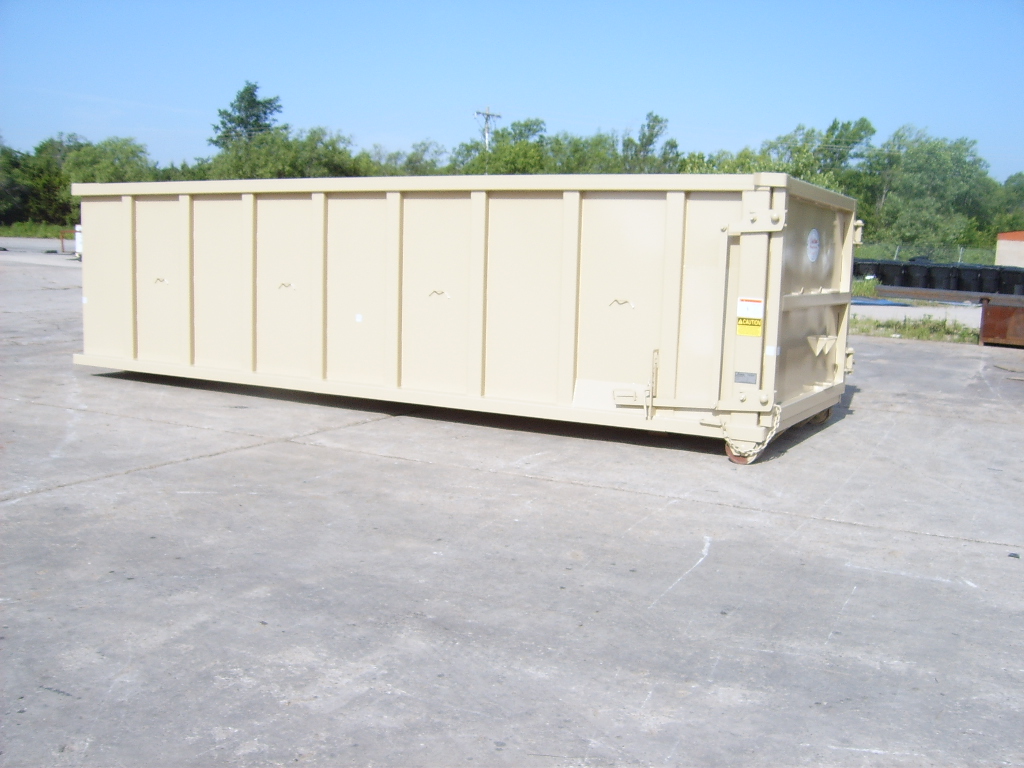

SUC52637SUC51954SUC54601

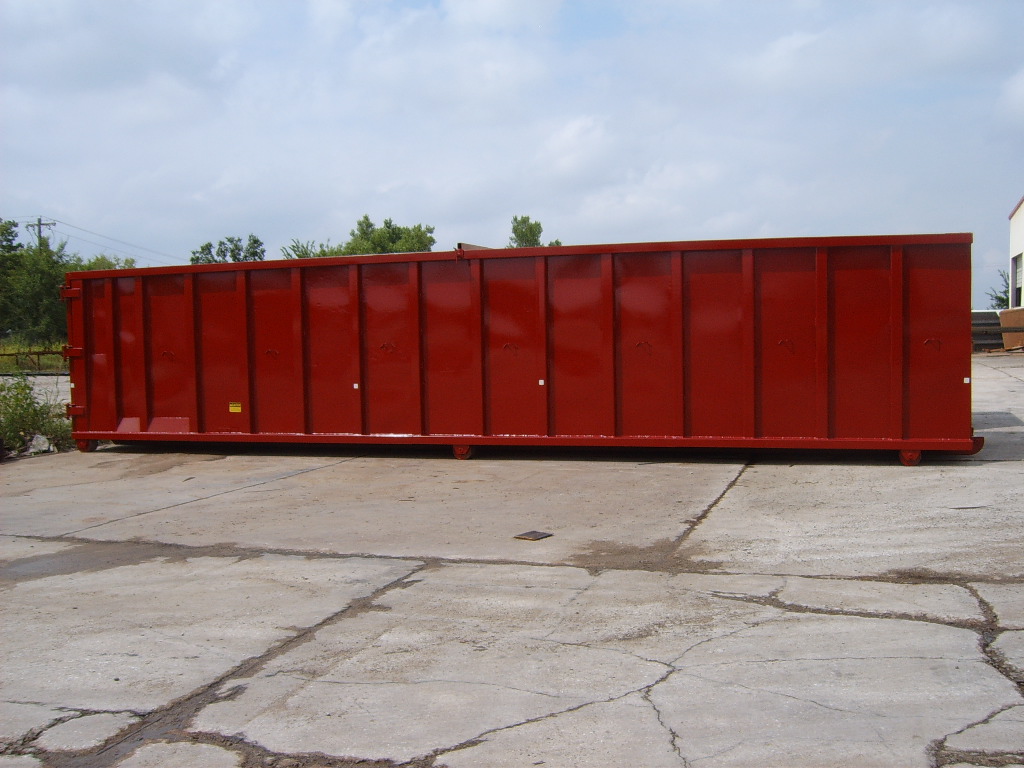

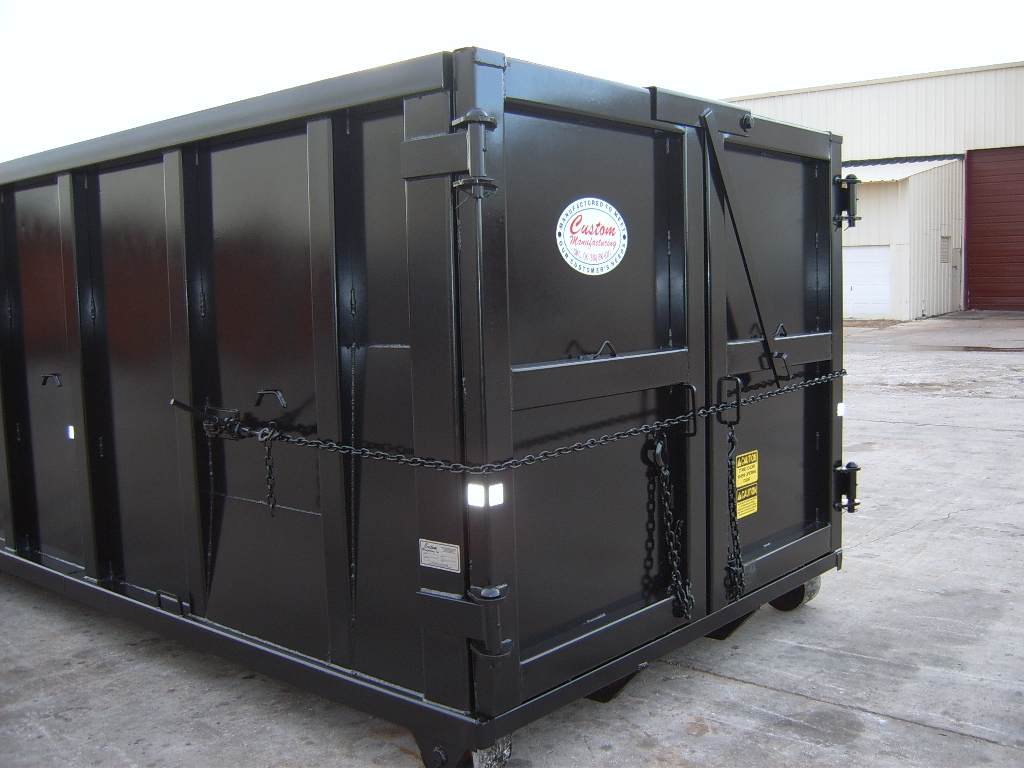

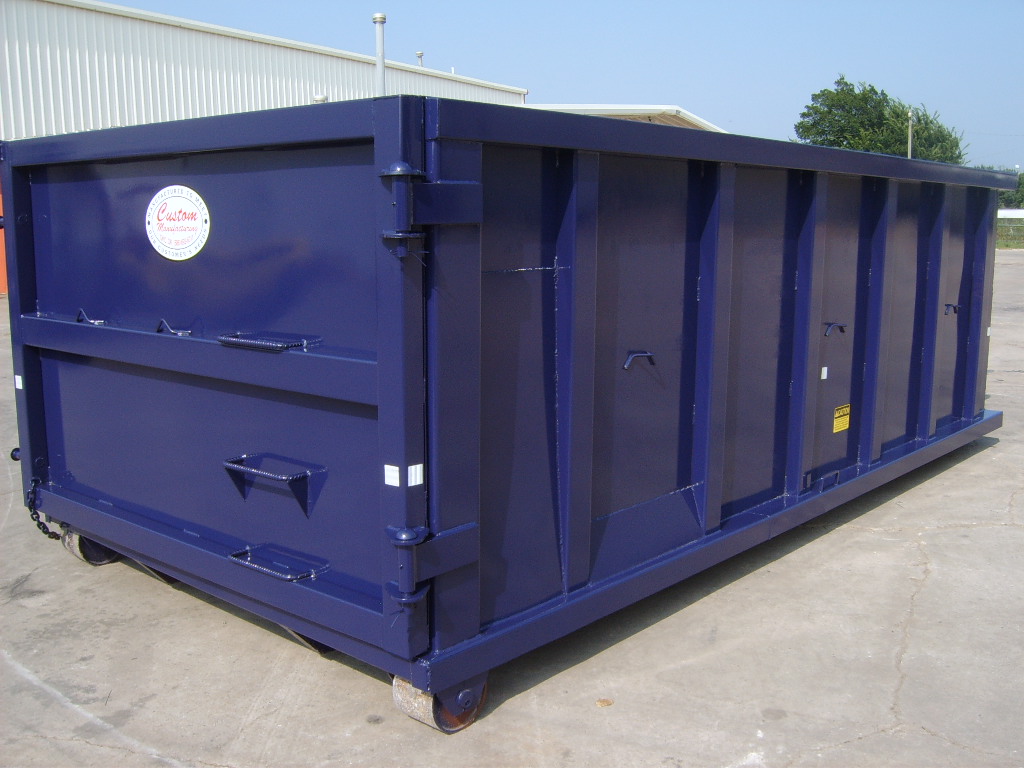

rectangle_open_top_1205_(11)SUC54193SUC52877

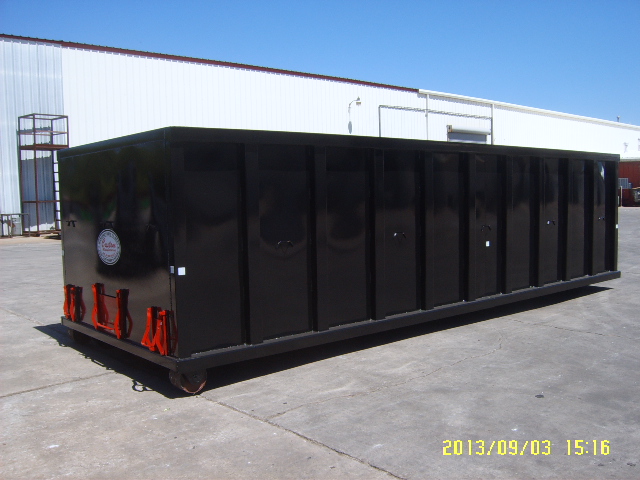

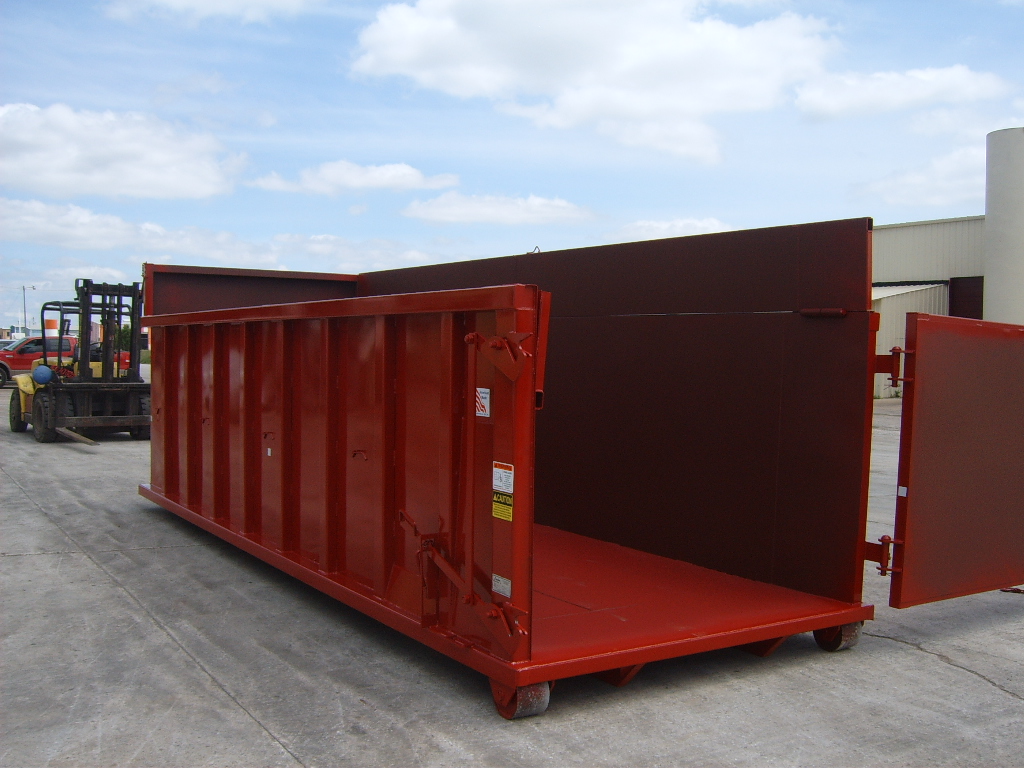

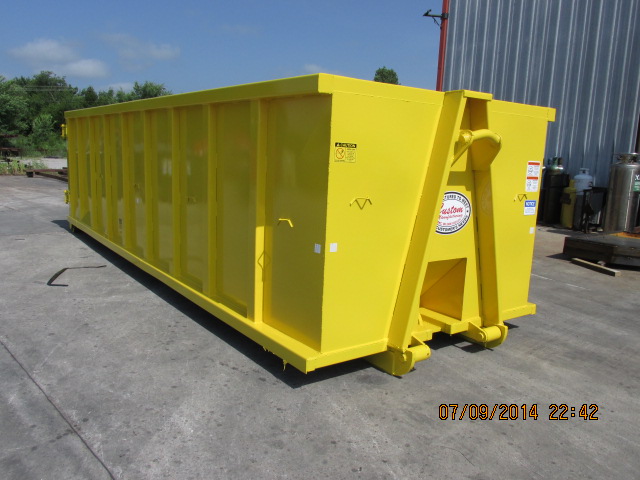

SUC51753SUC50220IMG_0311

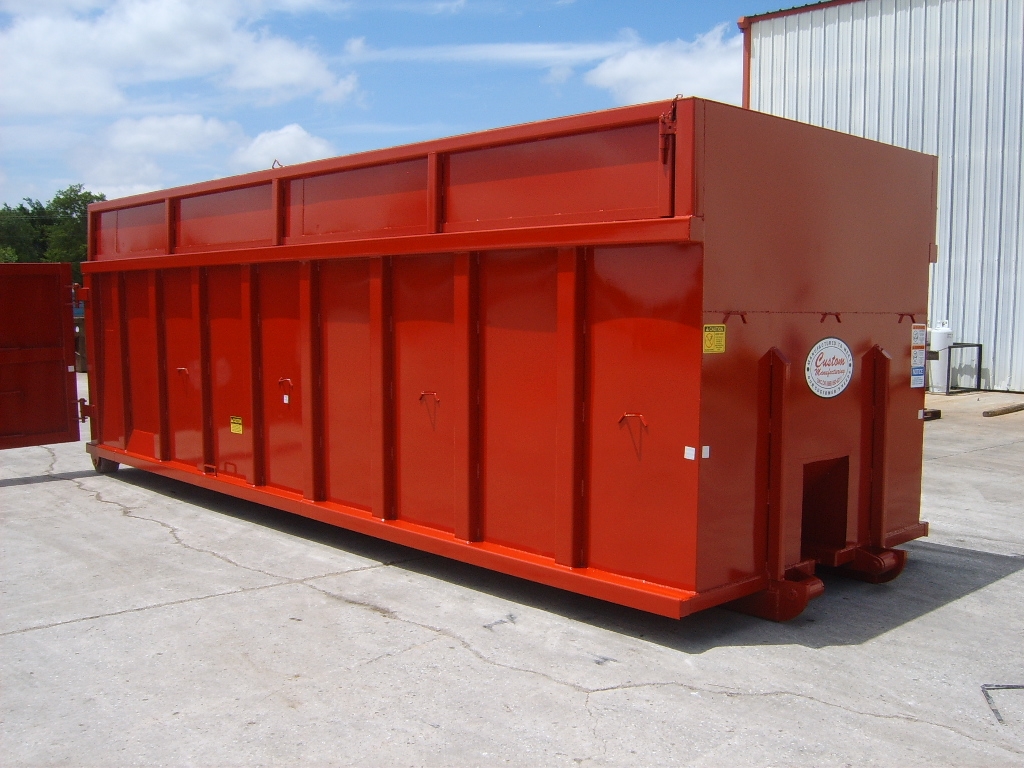

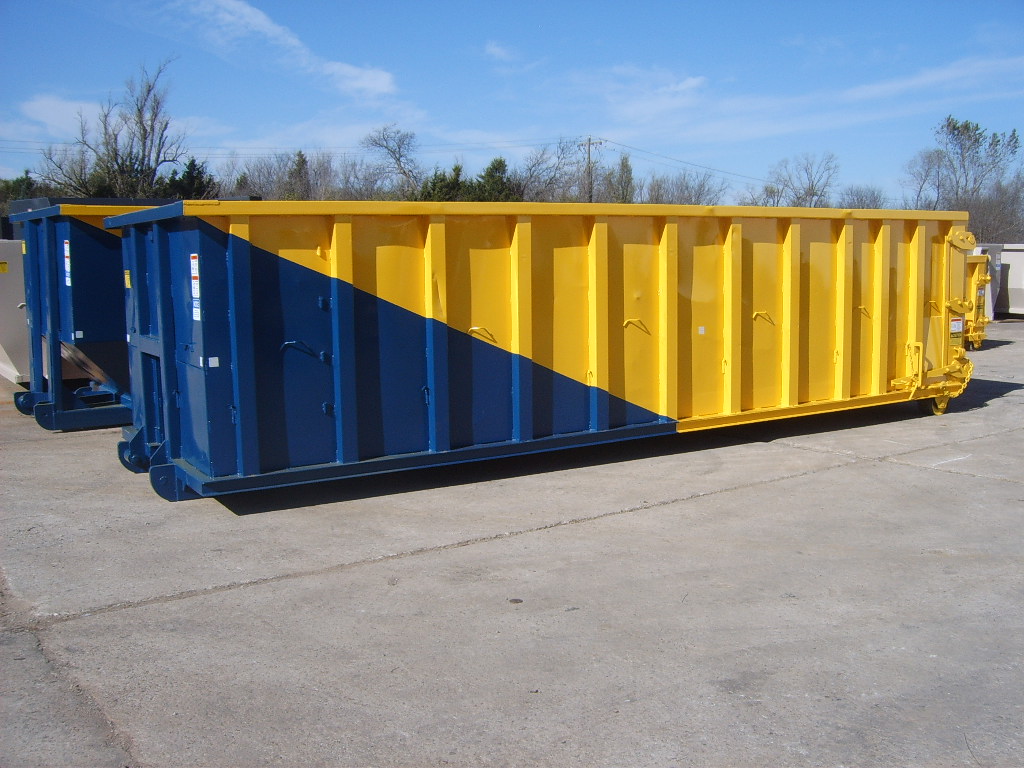

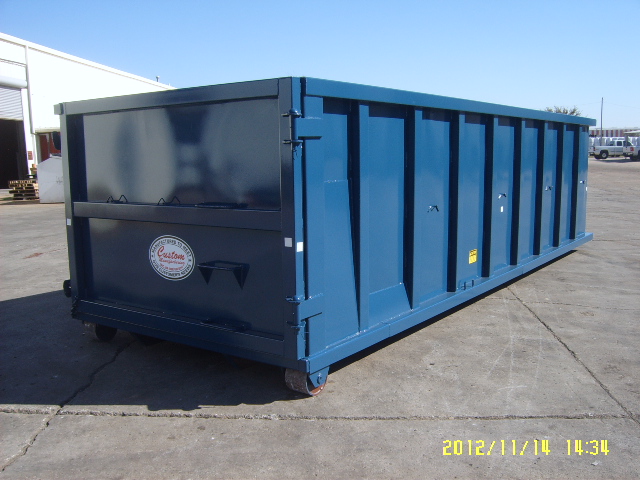

SUC50226SUC54617SUC50232







rect_open_top_drawing

SIZE  A B C D LOAD
 10YD 38" 50" 96" 13'4" 8
 20YD 43" 55" 96" 23'6" 5
 30YD 63" 77" 96" 23'6" 4
 40YD 84" 96" 96" 23'6" 3

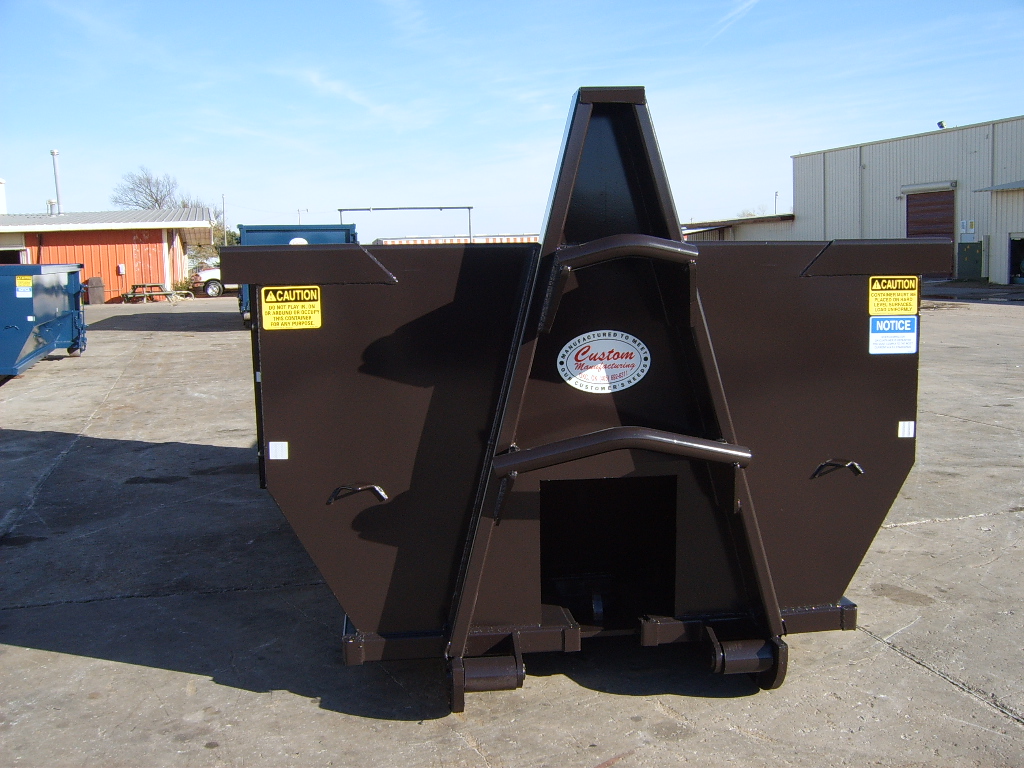

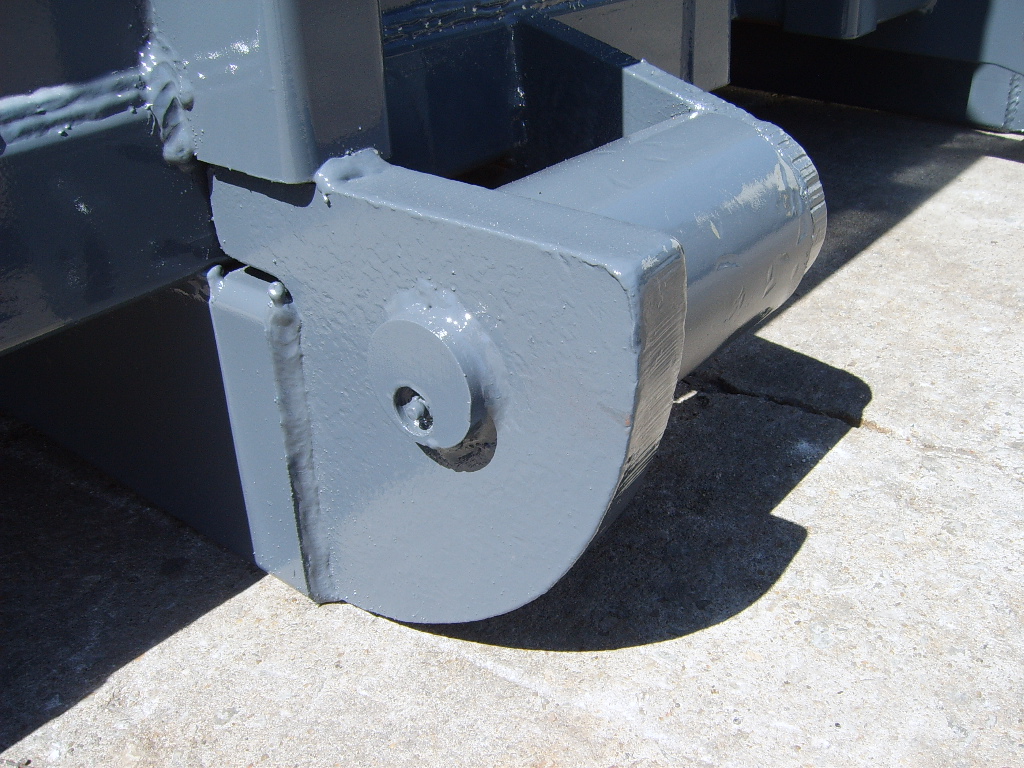

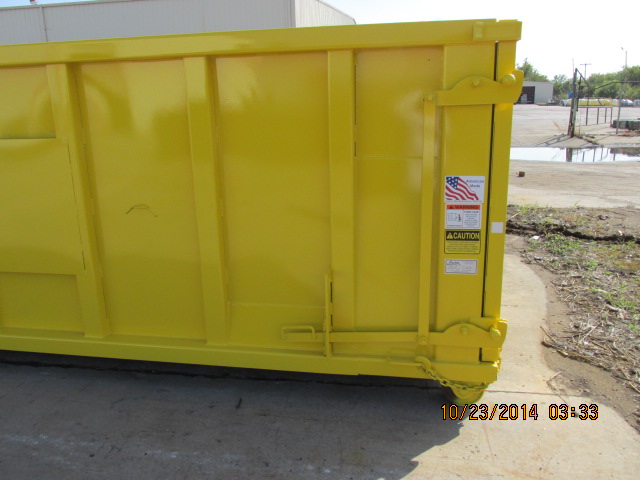

112205_(3)IMG_1104Bul_Nose_and_Rooler

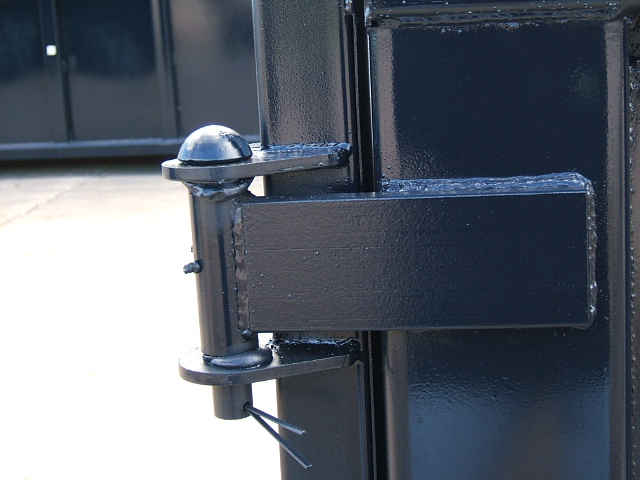

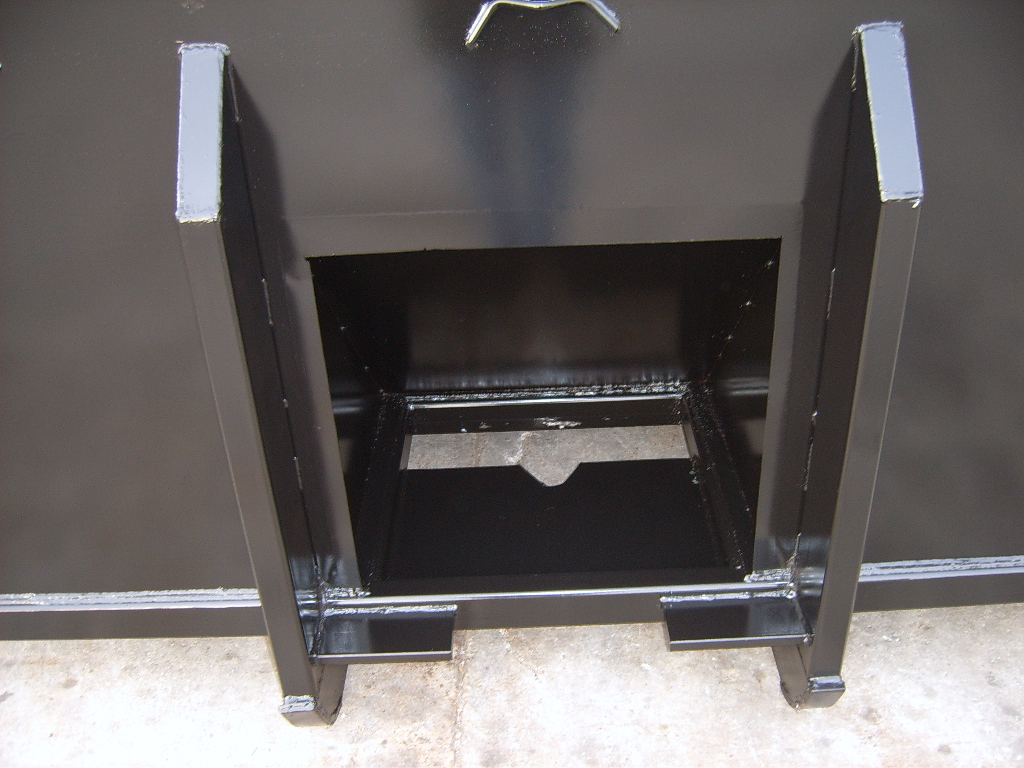

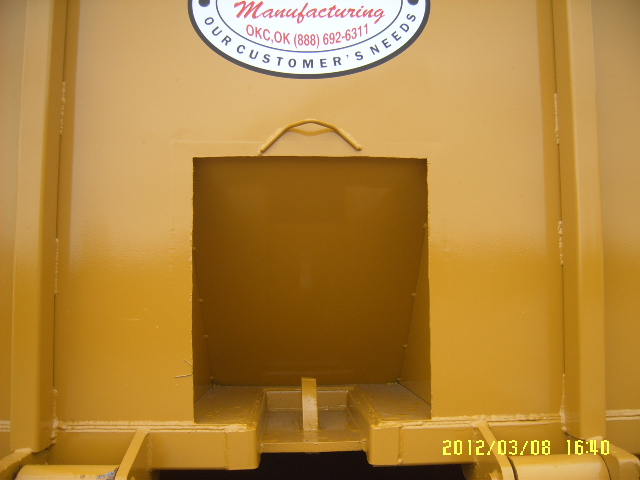

rectangle_open_top_1205_(4)SUC527562005_0309Image0005








STANDARD FEATURES

  • Sides, Bulkhead and Doors       12 Ga. HR Sheet
  • Top Rail                                        4" X 4" X 11 Ga. Structural Tube
  • Floor                                              3/16" HR Plate
  • Main Rails                                    6" X 2" X 3/16" Structural Tube
  • Solid Bar Rail Butts                    1 1/4" HR Plate
  • Roller Finger                                3/4 Plate Roller Finger
  • Pull Plate and Pull Hook            Pull Plate (3/4" HR Plt) / Pull Hook ( 1 1/4" Grd 50 Plt)
  • Gussets                                           (2) Gussets on every other cross member
  • Rear Wheels                                  (2) 8" with 1 7/8" CR Axles
  • Axles                                              All axles and hinges have zerk grease fittings
  • Flat Bulkhead                               3 X 2 Vertical Tube Uprights
  • Latch                                              With Door Guides and Safety Chains
  • Primer                                             Red Oxide for improved durability
  • Paint Color                                    Per Customer Request
  • ANSI Safety Decals included on all equipment free of charge

OPTIONAL UNDER-STRUCTURE                 OPTIONAL ACCESSORIES
  • Front Wheels                                              Top Rails      4" X 4" X 3/16" or 1/4"
  • Dempster                                                     Main Rails    6" X 2" X 1/4" or 6" X 2" X 3/8"
  • Heil Dead Lift                                            Wear Strip    1/4" X 1 1/2"
  • Ampliroll                                                     Floor             1/4"
  • Stellar                                                           Front Wheels/Landing Pads
  • Swap Loader                                               Cross members on 12" Centers
  • Pal-Lift
