Rectangular Receiver Containers

Custom  Manufacturing's commitment to quality is best demonstrated by the durability of the product we manufacture.  We do not mass produce our products.  All Containers are built to our customers specification and satisfaction.  Our containers are AMERICAN made 100%

Integrity              Quality             Tradition               Superiority

Custom  Manufacturing's  Rectangular Receiver Containers are manufactured from prime structural grade sheet, plate, and tubing.  For greater reliability and durability, all door openings are reinforced with tubing and structural channel.  A 3/16" floor along with grease fittings for all moving parts are only a few of the many features that make Custom Manufacturing containers the most profitable part of your refuse operation.

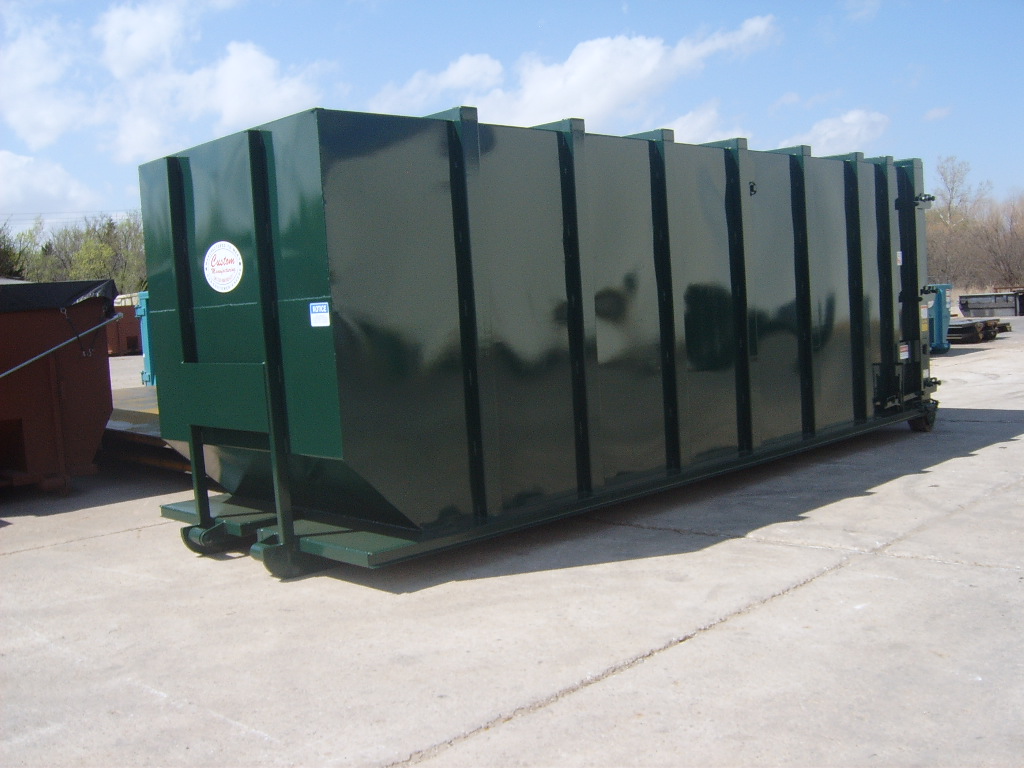

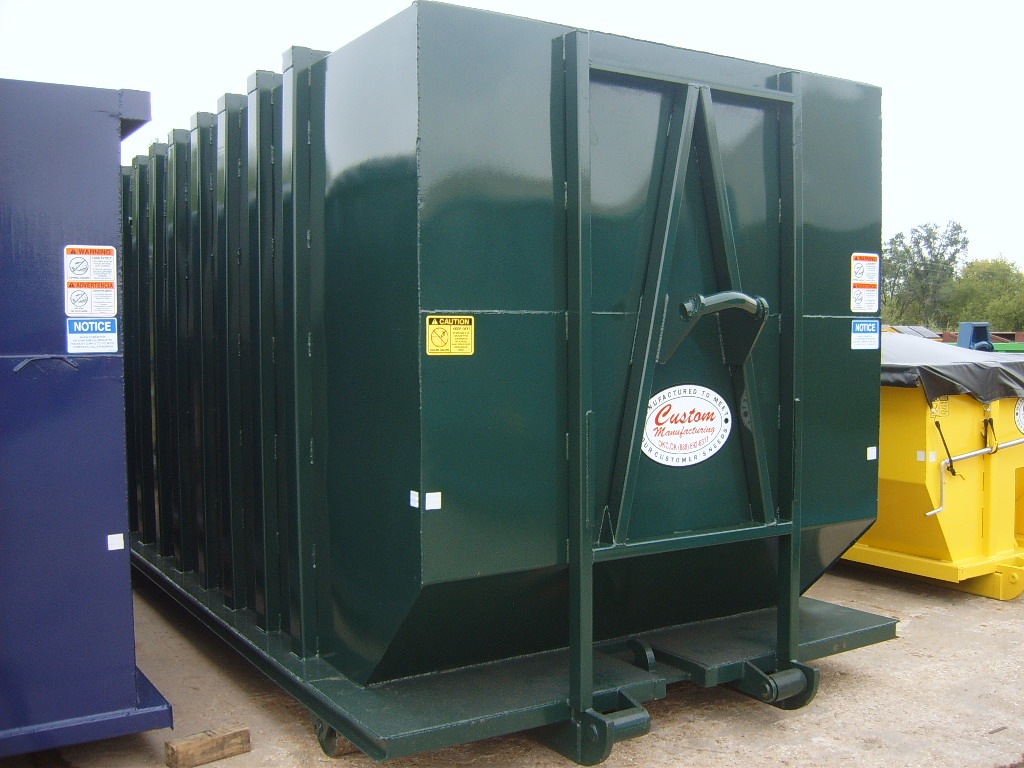

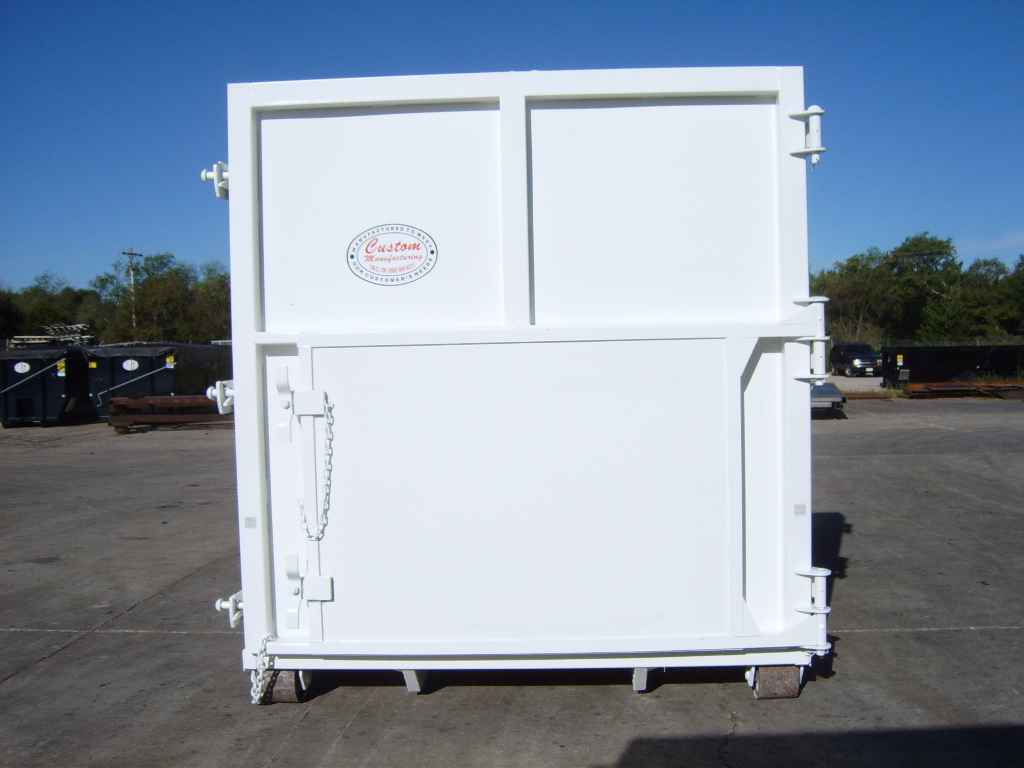

SUC50316SUC50456SUC52995

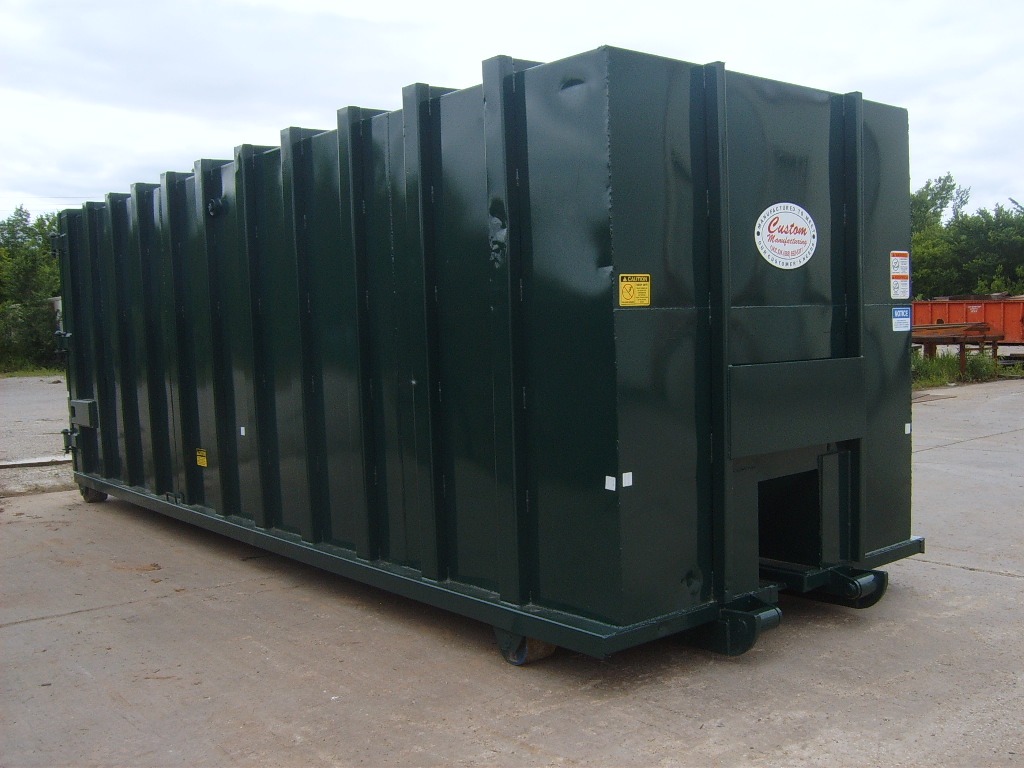

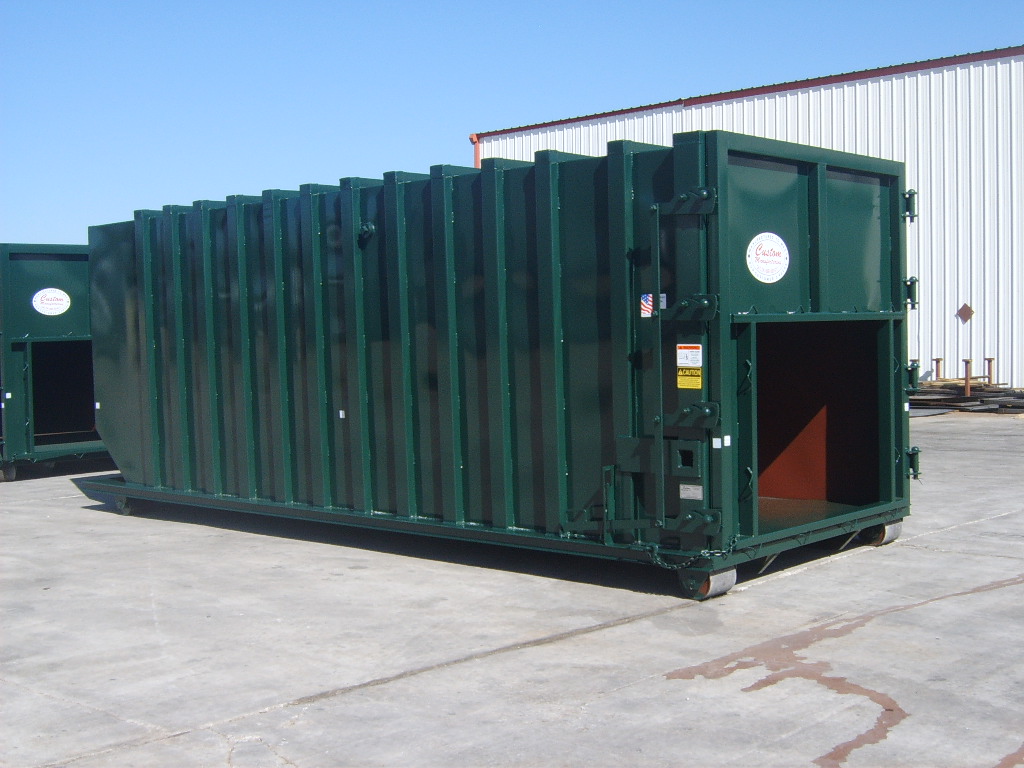

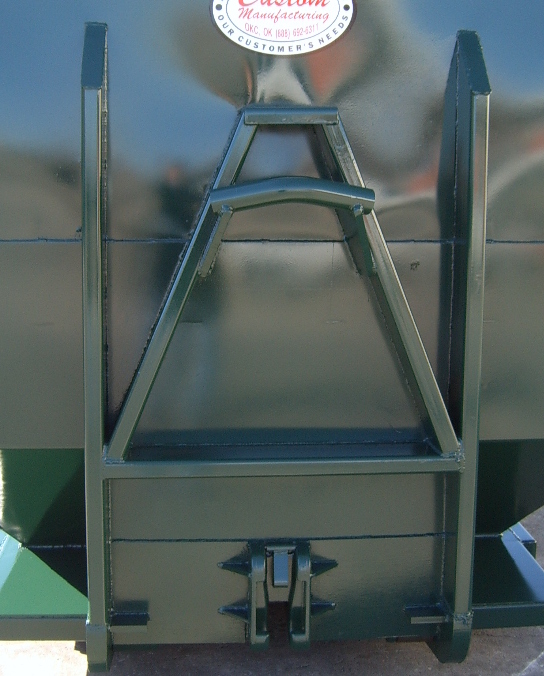

SUC50544112905SUC50710

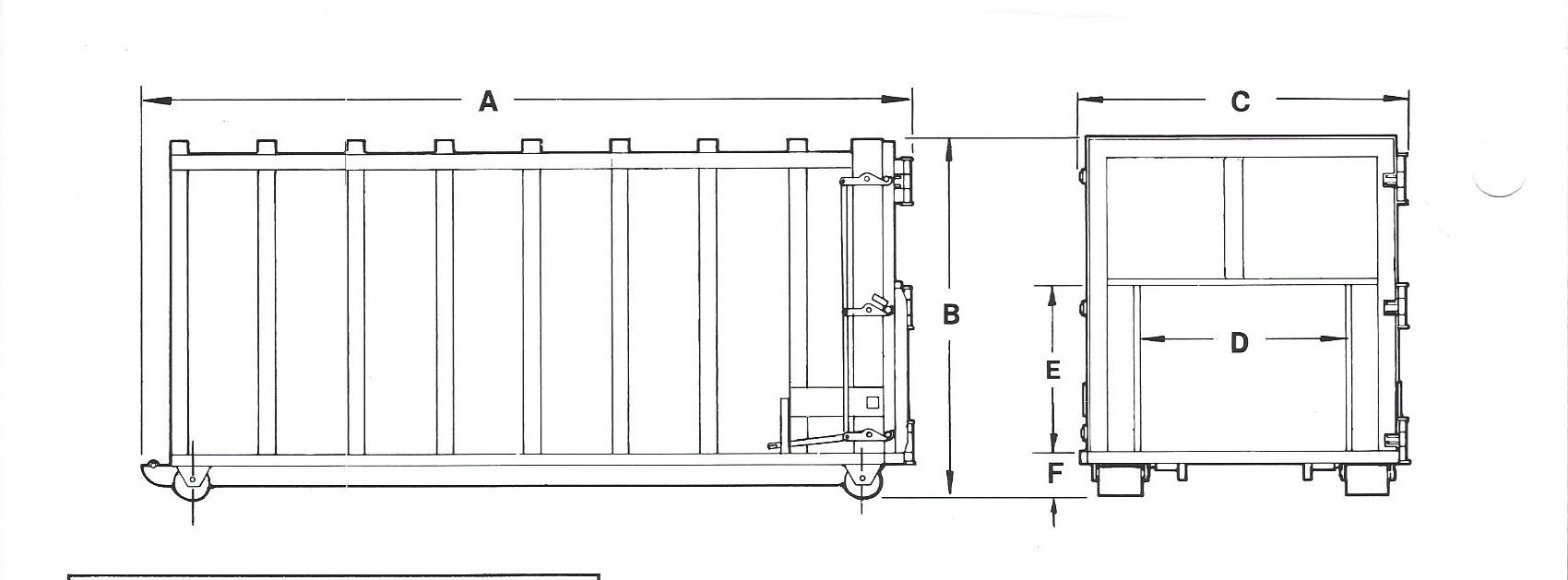

Rectangular_Receiver_Cont1













SIZE               A           B            C           D           E           F
20 Yd         17' 6"     77"        96"       65"       48"       12"
35 Yd         21' 6"     108"      96"       65"       48"       12"
40 Yd         23' 6"     108"      96"       65"       48"       12"
42 Yd         25' 6"     108"      96"       65"       48"       12"


Adjustable_HIngePull_HookAdj_Latch_Cente

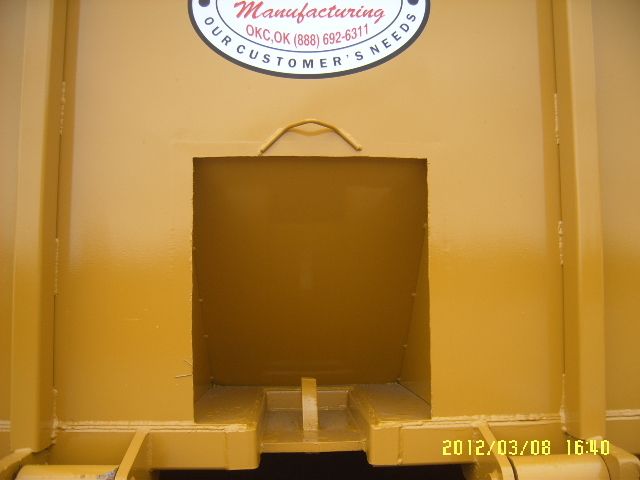

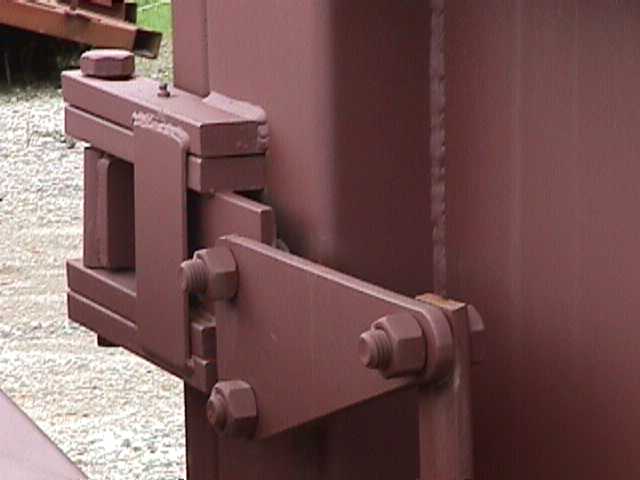

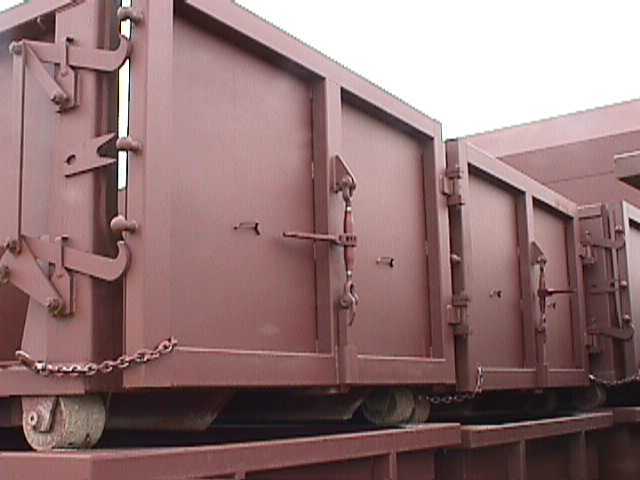

Adjustable Hinge                          Pull Hook                                     Adjustable Latch and
                                                                                                            Center Dead Bolt

OPTIONAL UNDER-STRUCTURE                 OPTIONAL ACCESSORIES
  • Pal-Lift                                                       Walls               3/16"
  • Dempster                                                    Main Rails     6" X 2" X 1/4" or 6" X 2" X 3/8"
  • Heil Dead Lift                                           Wear Strip      3/8" X 2"
  • Ampliroll                                                    Floor               1/4"
  • Stellar                                                          Sani-Tech Ring
  • Swap Loader                                              Cable Pin-Off


STANDARD FEATURES

  • Sides and Roof                             12 Ga. HR Sheet, 12 Ga. Bulkhead & Door 10 Ga.
  • Bump Plate                                   3/8"
  • Floor                                              3/16" HR Plate
  • Main Rails                                   6" X 2" X 3/16" Structural Tube
  • Solid Bar Rail Butts                   1 1/4" HR Plate
  • Nose Rollers                                4" OD Tube X 6 1/2" Lg with 1 7/8" CR axles
  • Pull Plate and Pull Hook           Pull Plate (3/4" HR Plt) / Pull Hook ( 1 1/4" Grd 50 Plt)
  • Cross Members                           18" Centers
  • Roller Fingers                             3/4" Plate Roller Finger
  • Gussets                                         (2) Gussets on every other cross member
  • Wheels                                         (4) 8" with 1 7/8" CR Axles
  • Axles and Hinges                       All axles and hinges have zerk grease fittings
  • Bulkhead Vertical Tube           4 X 2 X 3/16 Structural Tube
  • Latch                                            With Door Guides and Safety Chains
  • Primer                                           Phenolic Modified Industrial Primer
  • Paint Color                                  Per Customer Request
  • ANSI Safety Decals included on all equipment free of charge
