Rear Load Containers

Custom  Manufacturing's commitment to quality is best demonstrated by the durability of the product we manufacture.  We do not mass produce our products.  All Containers are built to our customers specification and satisfaction.  Our containers are AMERICAN made 100%


   Integrity     Quality      Tradition       Superiority

Custom  Manufacturing's  Rear Load Containers are built from prime high quality steel plate and structural steel channel.  Our containers are built to provide durability and reliability.  Rear load containers are available in any size between 1 & 8 cubic yards.  We can custom design containers to fit your needs.  These rugged containers are manufactured using heavy gauge steel and solid steel trunnion bars to withstand years of heavy, dense loads.  Sloped side design makes for easier dumping.  For maneuverability, rear load containers are also available with casters.

ADDITIONAL STANDARD FEATURES:

**All seems lap formed and continuously welded inside and skip            welded outside.
**One color finish coat of industrial alkyd enamel outside.
**1 1/2" steel drain plug with chain.
**Rust inhibitive primer coat inside, outside and underneath for            improved durability.
**ANSI Safety Decal included on all equipment free of charge.

Rear Load Dimensions
Cubic Yard  Style Inside Height Outside Height Outside Height Back Inside Depth Inside Width Outside Width
 2 Rear Load 36" 37.5" 37.5" 36" 72" 80.5"
 3 Rear Load 48" 49.5" 49.5" 42" 72" 80.5"
 4 Rear Load 48" 49.5" 49.5" 48" 72" 80.5"
 6 Rear Load 47" 61.5" 61.5" 48" 72" 80.5"
 8 Rear Load 48" 73.5" 73.5" 48" 72" 80.5"

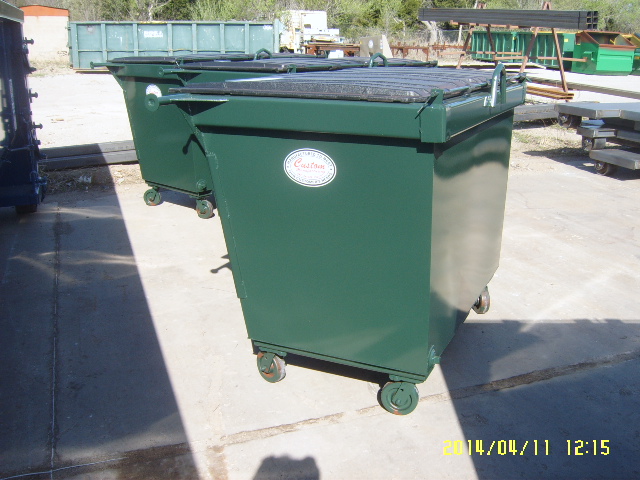

SUC51993SUC53044

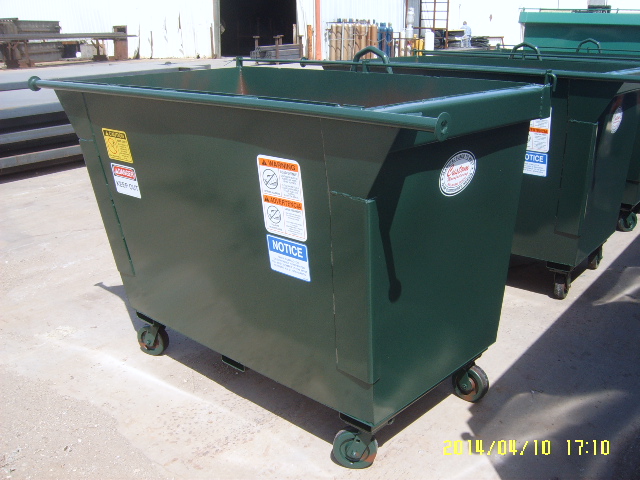

SUC53038

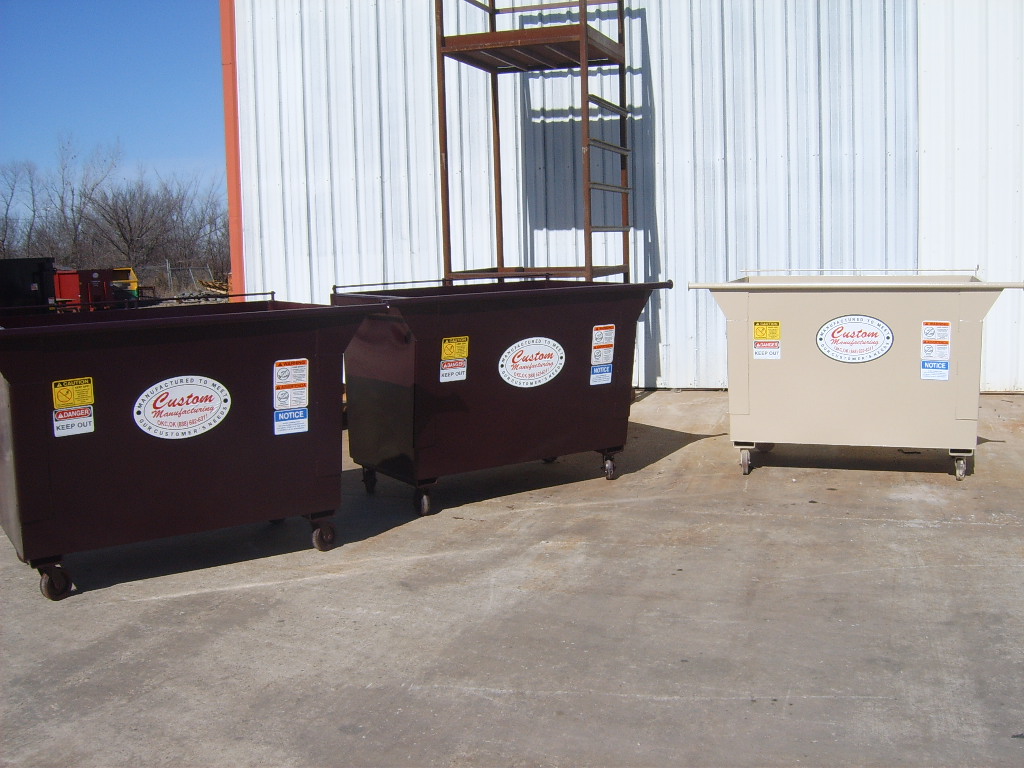

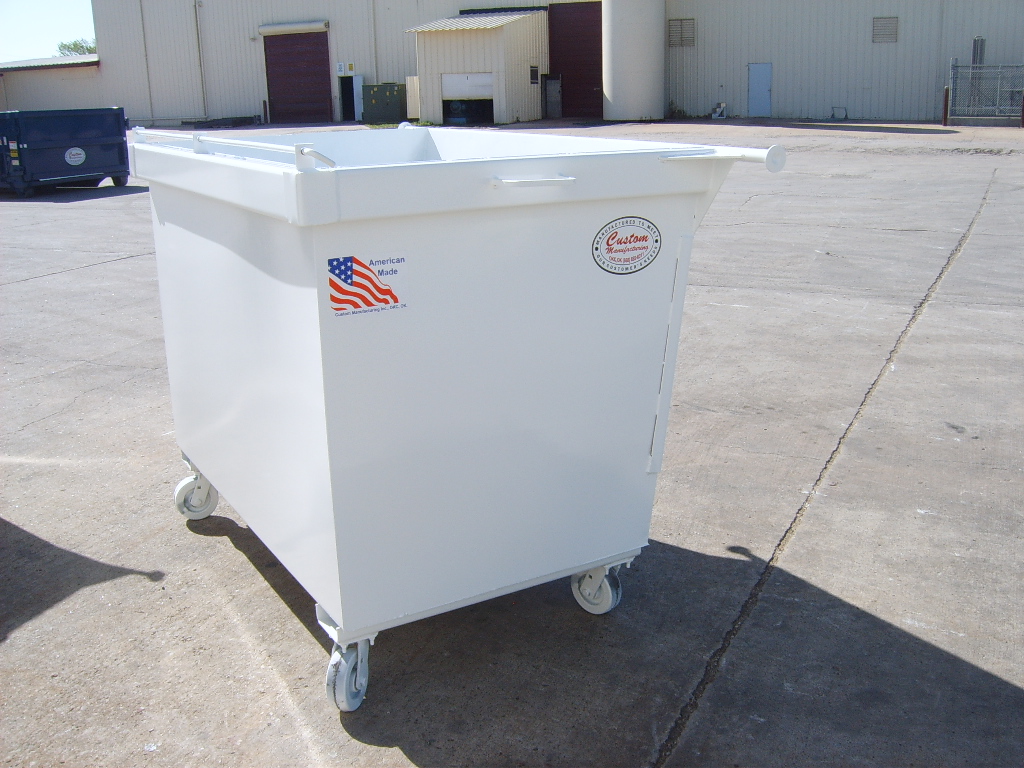

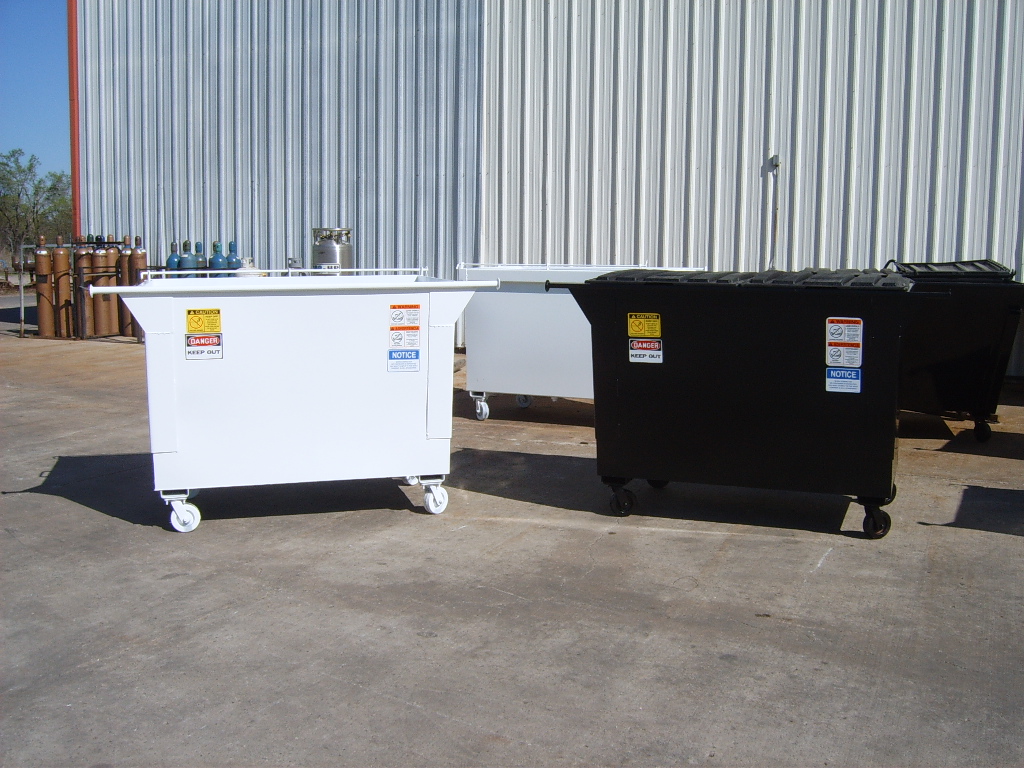

SUC51122SUC51127SUC50596

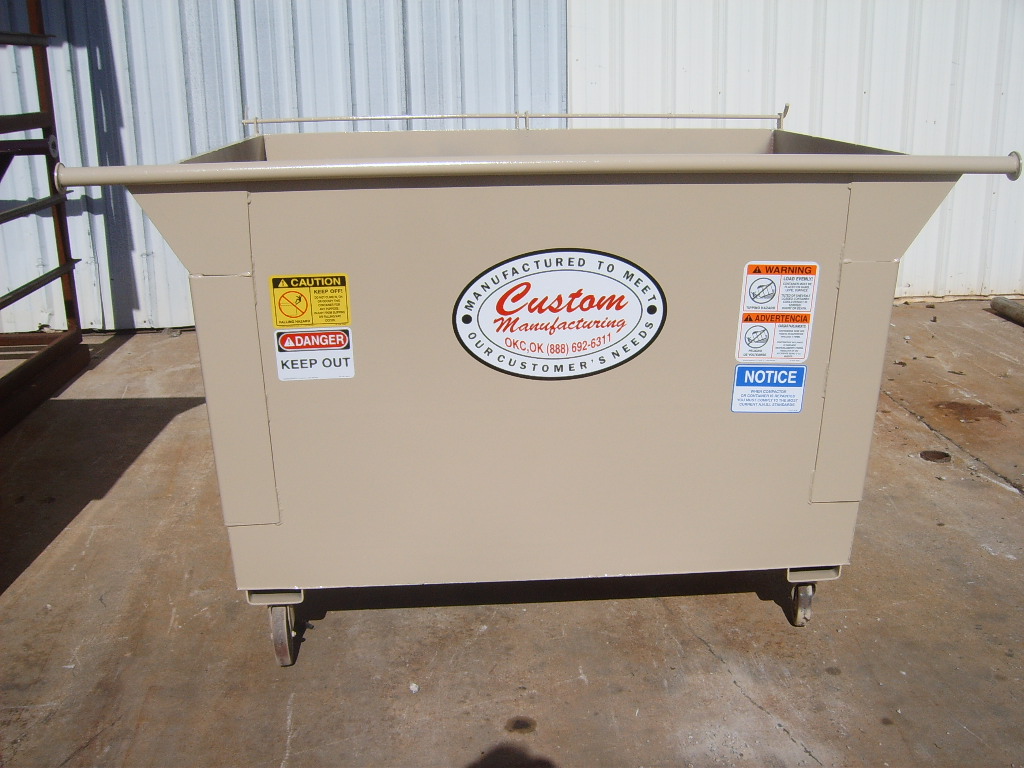

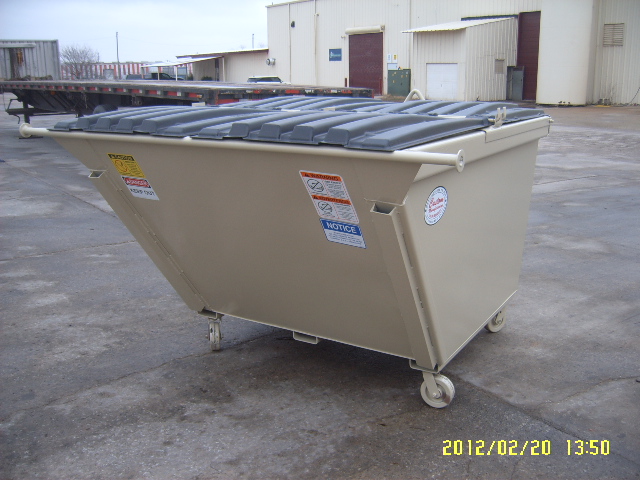

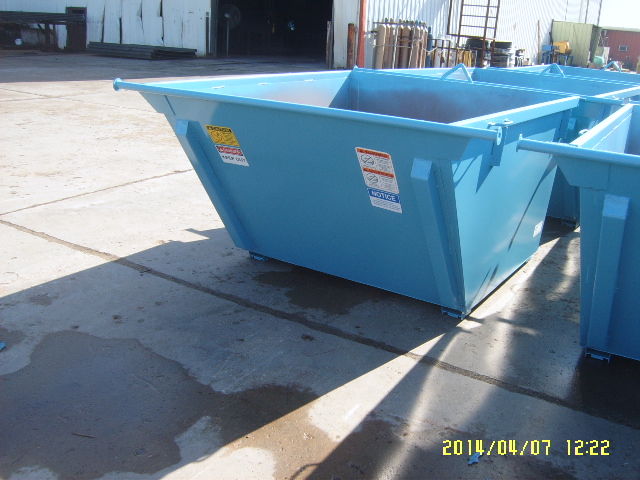

SUC50586SUC52983SUC52470

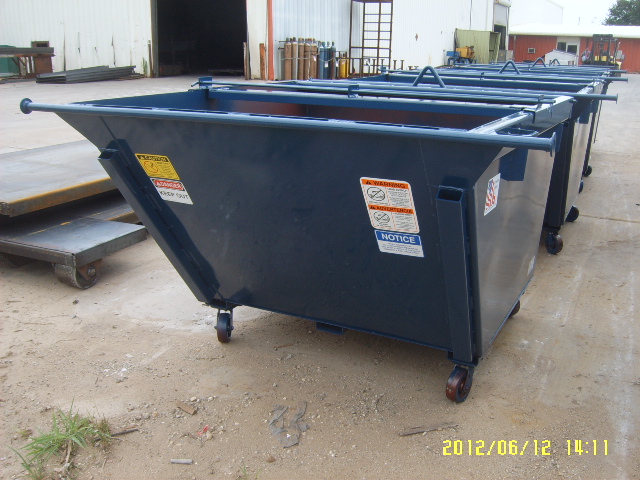

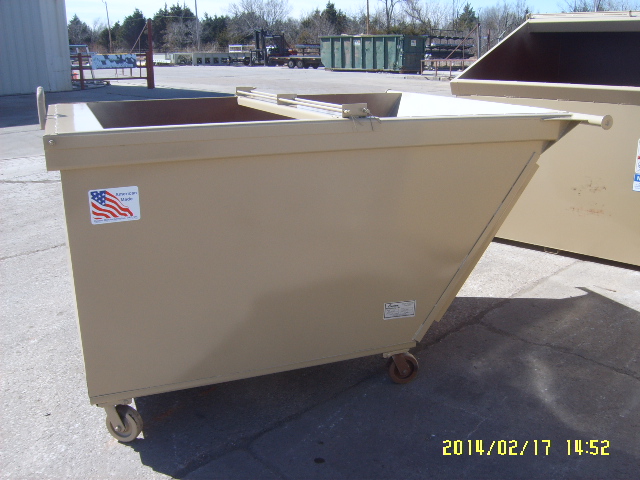

SUC53659SUC53450SUC52550








STANDARD FEATURES

  • Sides, Bulkhead and Doors       10 Ga. HR Sheet
  • Top Rail                                    4" X 4" X 3/16" Structural Tube
  • Floor                                         3/16" HR Plate
  • Main Rails                                 6" X 2" X 3/16" Structural Tube
  • Solid Bar Rail Butts                  1 1/4" HR Plate
  • Roller Finger                             3/4 Plate Roller Finger
  • Pull Plate and Pull Hook             Pull Plate (3/4" HR Plt) / Pull Hook ( 1                                                     1/4" Grd 50 Plt)
  • Gussets                                     (2) Gussets on every other cross                                                            member
  • Rear Wheels                              (2) 8" with 1 7/8" CR Axles
  • Axles                                         All axles and hinges have zerk grease                                                    fittings
  • Flat Bulkhead                             3 X 2 Vertical Tube Uprights
  • Latch                                         With Door Guides and Safety Chains
  • Primer                                        Phenolic Modified Industrial Primer
  • Paint Color                                 Per Customer Request
  • ANSI Safety Decals included on all equipment free of charge

OPTIONAL UNDER-STRUCTURE                 OPTIONAL                                                                                    ACCESSORIES

  • Front Wheels                 Top Rails      4" X 4" X 1/4"
  • Dempster                       Main Rails    6" X 2" X 1/4" or 6" X 2" X 3/8"
