De-Watering Containers


Custom  Manufacturing's commitment to quality is best demonstrated by the durability of the product we manufacture.  We do not mass produce our products.  All Containers are built to our customers specification and satisfaction.  Our containers are AMERICAN made 100%

Integrity              Quality             Tradition               Superiority

Custom Manufacturing's
De-Watering containers are used in several applications. De-Watering containers will reduce the waste volume by separating water from sludge.  This will also lighten the load when transporting.  Disposal and hauling costs are greatly reduced since moisture volume is greatly reduced.  Our containers are built to provide durability and reliability and as always built to our customer's specifications.

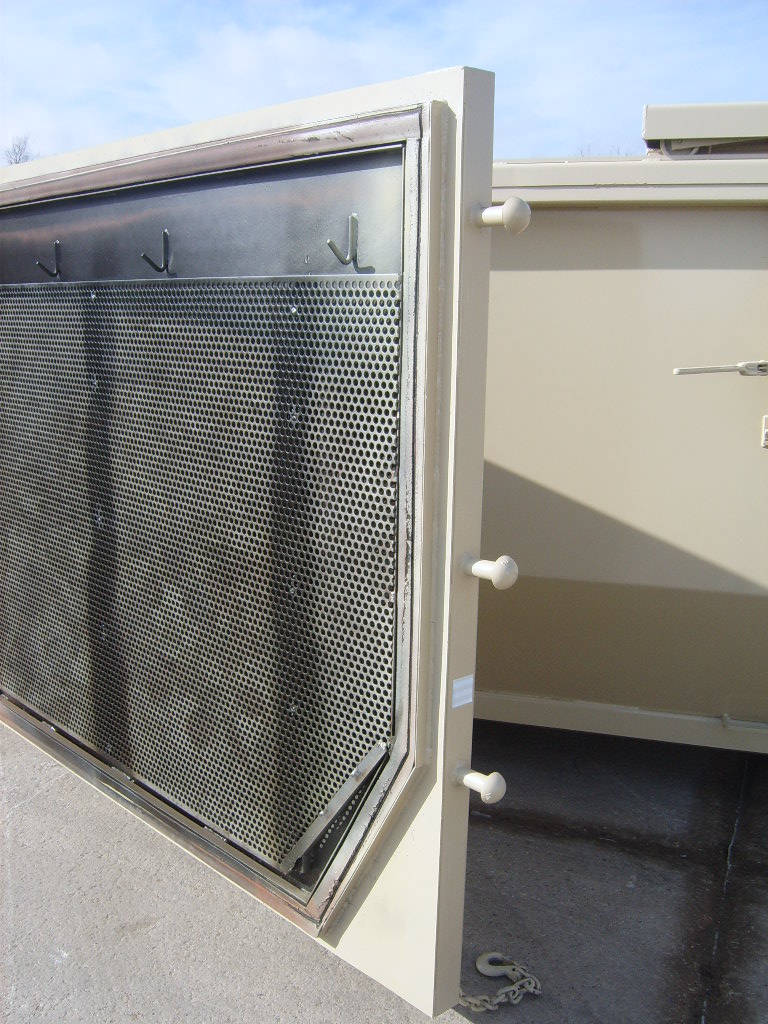

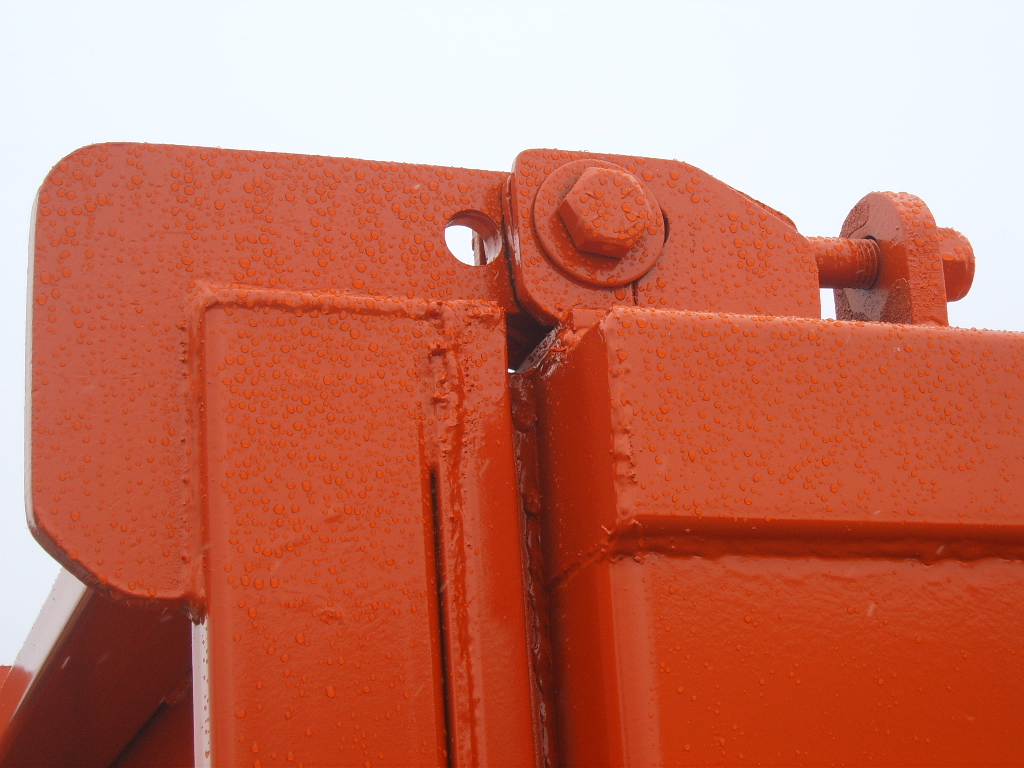

Top_HInge_DoorAdjustable_Grab_HandsLiner_Hooks_On_Door

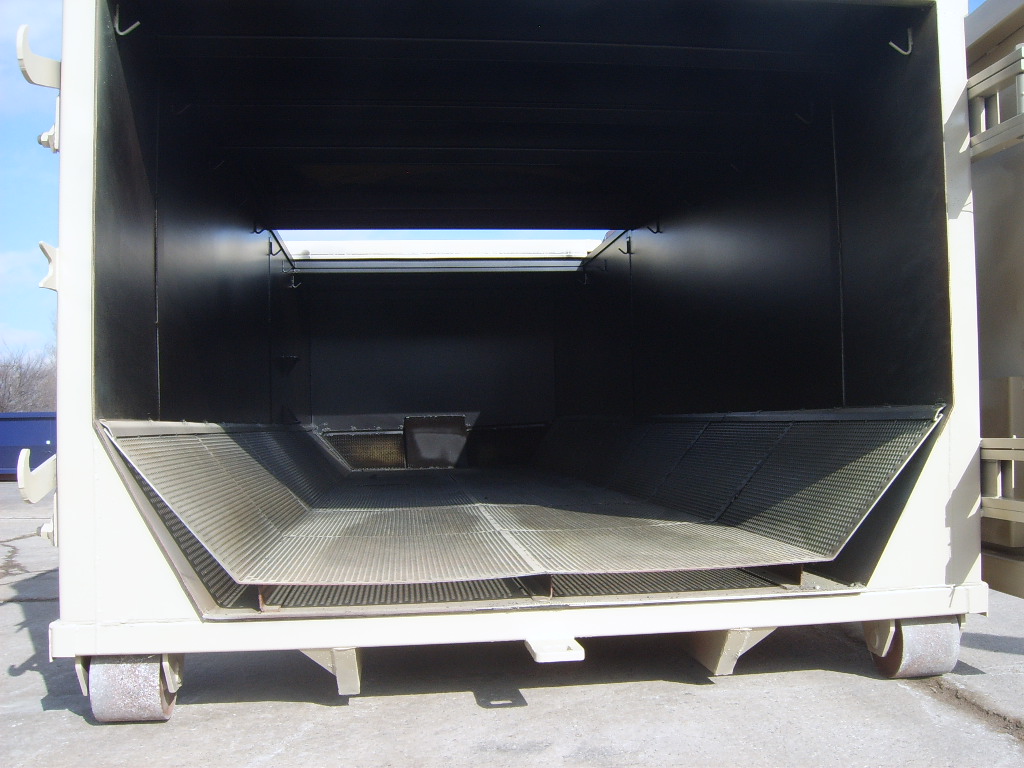

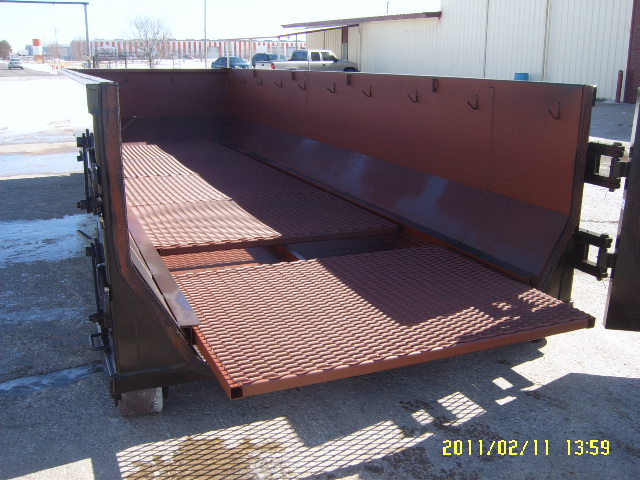

Bul_Nose_and_Rooler  Removable_Dewater_floorStainless_steel_perforated_floor

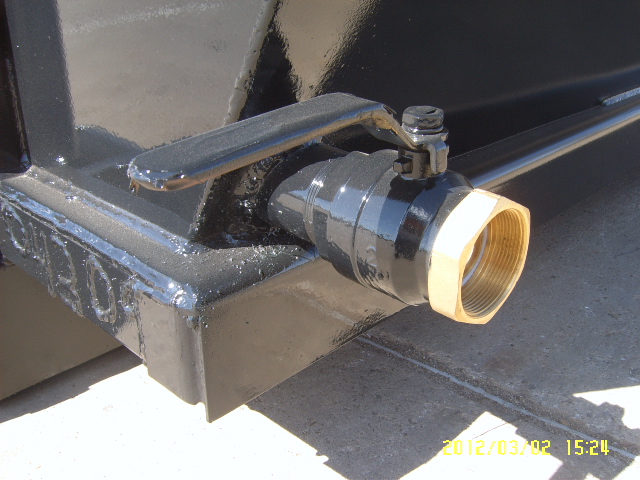

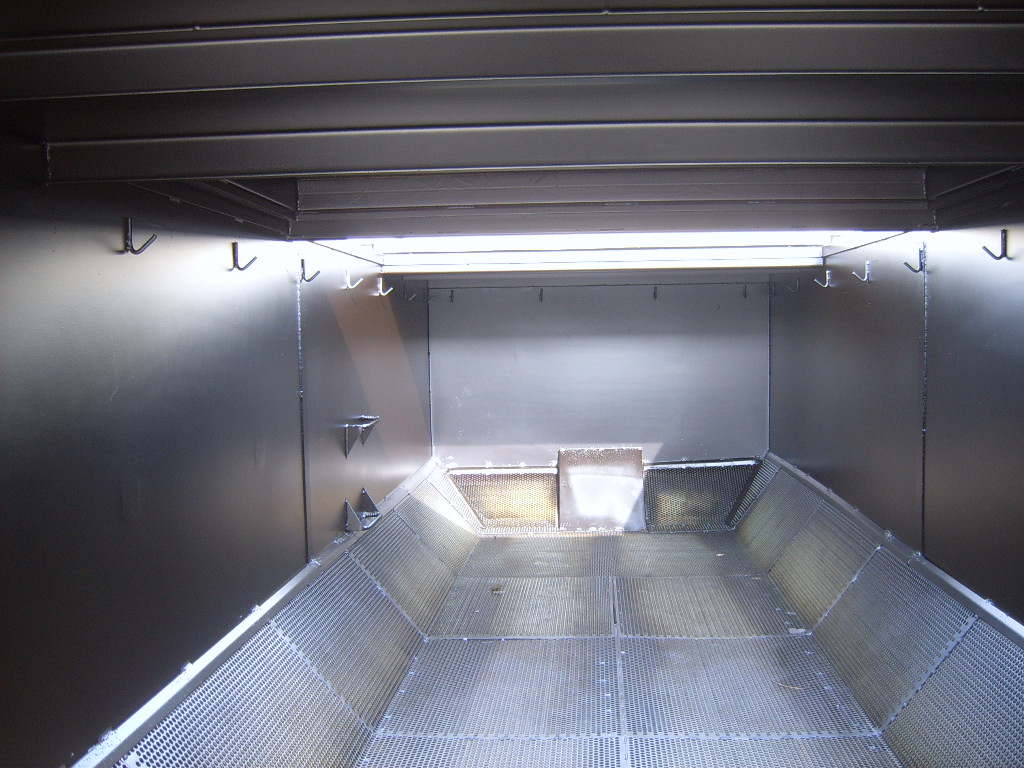

Adjustable_HInge3_inch_stainless_steel_gate_valveInterior_Liner_Hooks



Standard Features:



  • Side Walls, Bulk Head & Door: 10 Ga., HR (also available in 3/16')
  • Top Rail 4x4x3/16 Structural Tubing
  • Bump Plate
  • Bulkhead Vertical Tube 4x2x3/16 Structural Tube
  • Adjustable Hinges with Grease Zerk Fittings
  • Adjustable Latch with Door Guides and Safety Chains
  • 1x2 Closed Cell Gasket (skinned on 4 sides)
  • Floor 3/16: HR Plate
  • Main Rails 6"x2"x1/4" Structural Tube
  • (2) Gussets on every other cross member
  • Rear Wheels (2) 8"x6 1/2" with 1 7/8" CR Axle
  • Solid Bar Rail Butts 1 1/4" HR Plate
  • Nose Rollers, 4" OD Tube x 6 1/2" Long with 1 7/8"
  • Roller Finer 3/4" Plate
  • Cross Members on 18" Center
  • Pull Plate (3/4" HR Plt) / Pull Hook ( 1 1/4" Grd 50 plt)
  • Fully Welded & Water Tested
  • Phenolic Modified Industrial Primer
  • Paint Color Per Customers Request
  • ANSI Safety Decals included on all equipment free of charge


Optional Accessories                                Option Under-structure

6" x 2" x 5/16" Main Rails                                                 Dempster
1/4 x 1 1/2" Wear Strip                                                     Heil Dead Lift

1/4" Floor                                                                         Ampliroll
Interior Coal Tar Epoxy                                                     Stellar
Splash Plates                                                                   Swap loader
Tarp Assembly                                                                  Pal Lift
Roll Top Lids                                                                    Additional drains can be added to fit your needs
Aluminium roll-Over Lid                                                     along with your desired size of valve.
Over Under Lids                                                               Custom to determine locations of drains.
2" Drain Valve Standard

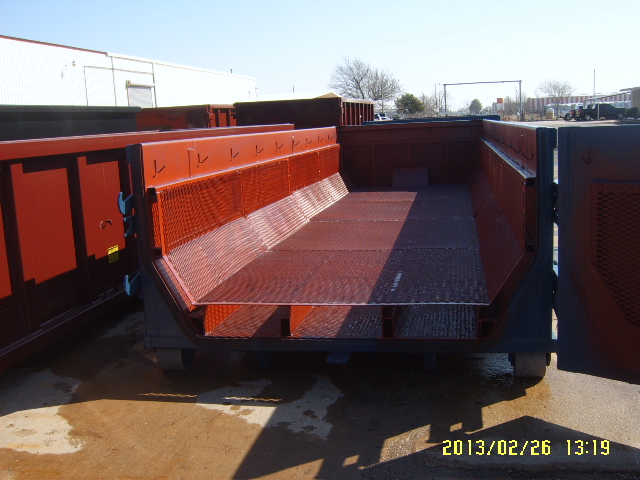

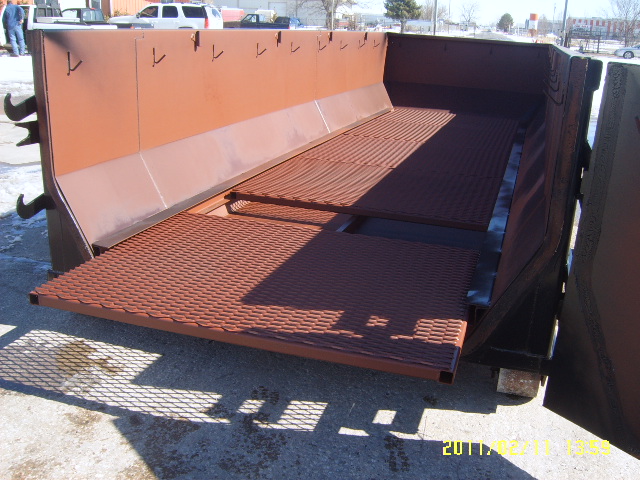

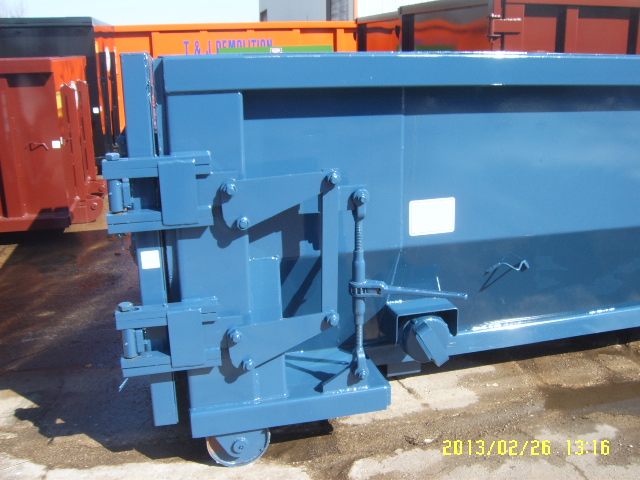

SUC55262SUC55265SUC50519

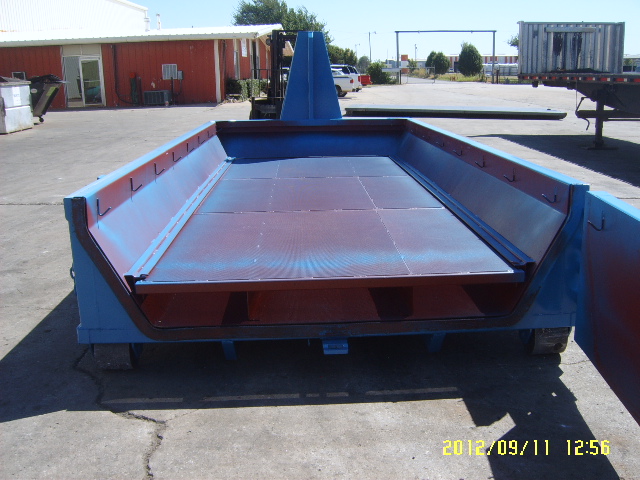

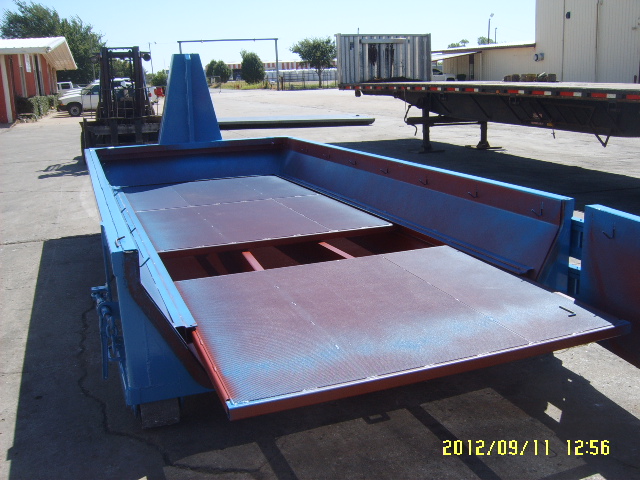

SUC50521SUC54302SUC54301
