Octagon Receiver Containers

Custom  Manufacturing's commitment to quality is best demonstrated by the durability of the product we manufacture.  We do not mass produce our products.  All Containers are built to our customers specification and satisfaction.  Our containers are AMERICAN made 100%

Integrity     Quality      Tradition      Superiority

Custom  Manufacturing's  Octagon Receiver Containers are manufactured from prime structural grade sheet, Plate, and tubing.  Our Octagon Receiver container has quality design features for maximum compaction payload and easy dumping.  Container are equipped with offset hinge. This container is not designed for dry waste.

112905_(13)Picture_072SUC55626






SUC52335SUC50414SUC54856






SUC54355SUC54202SUC50431






SUC52845SUC50197SUC52996

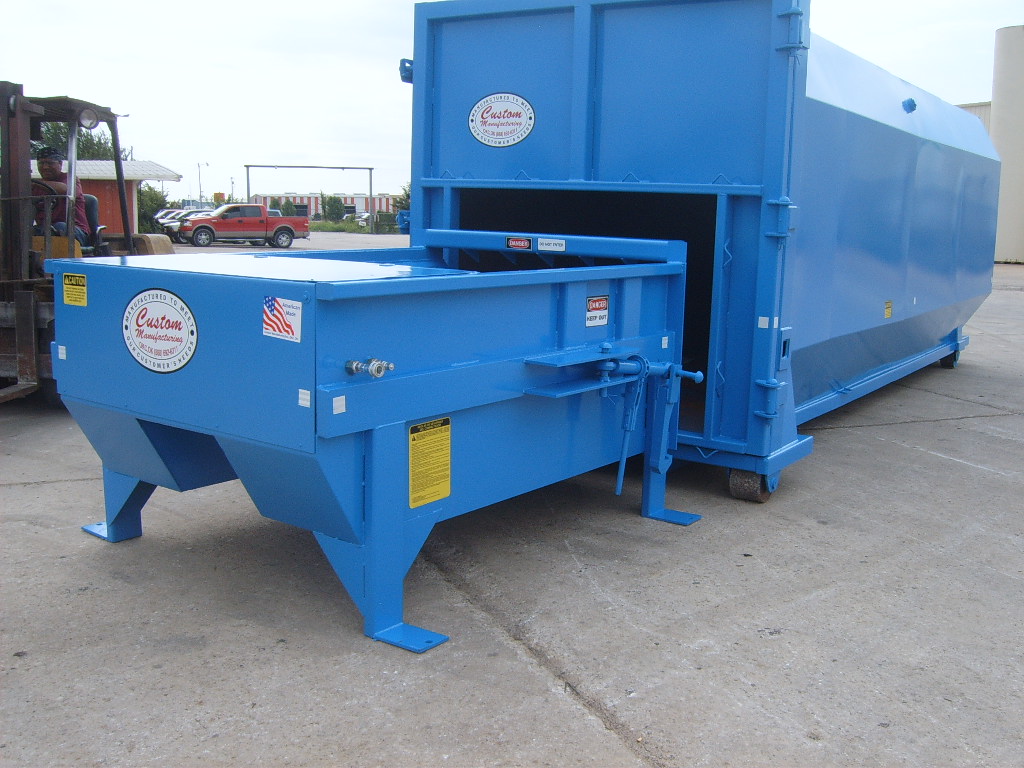

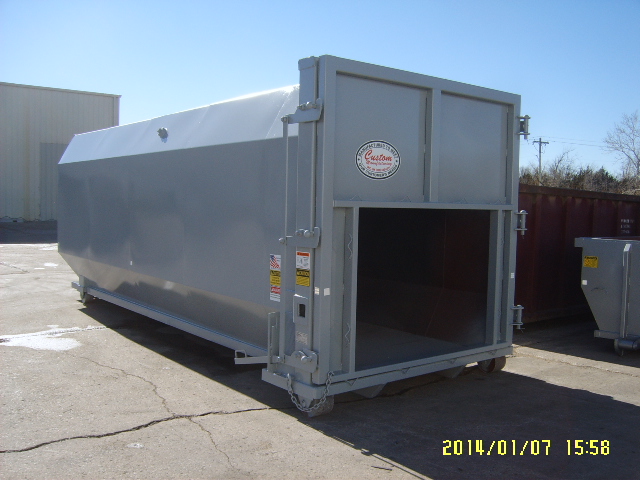

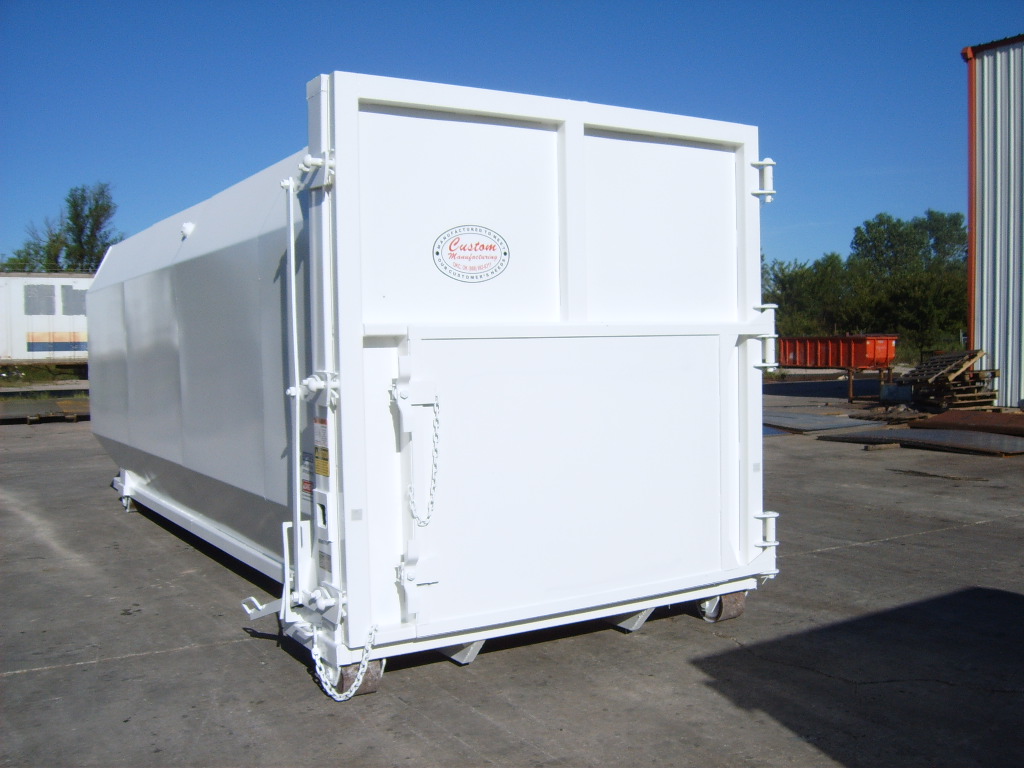

Secondary Door           Octagon Receiver         Secondary Door
                                                                   & Stationary Compactor

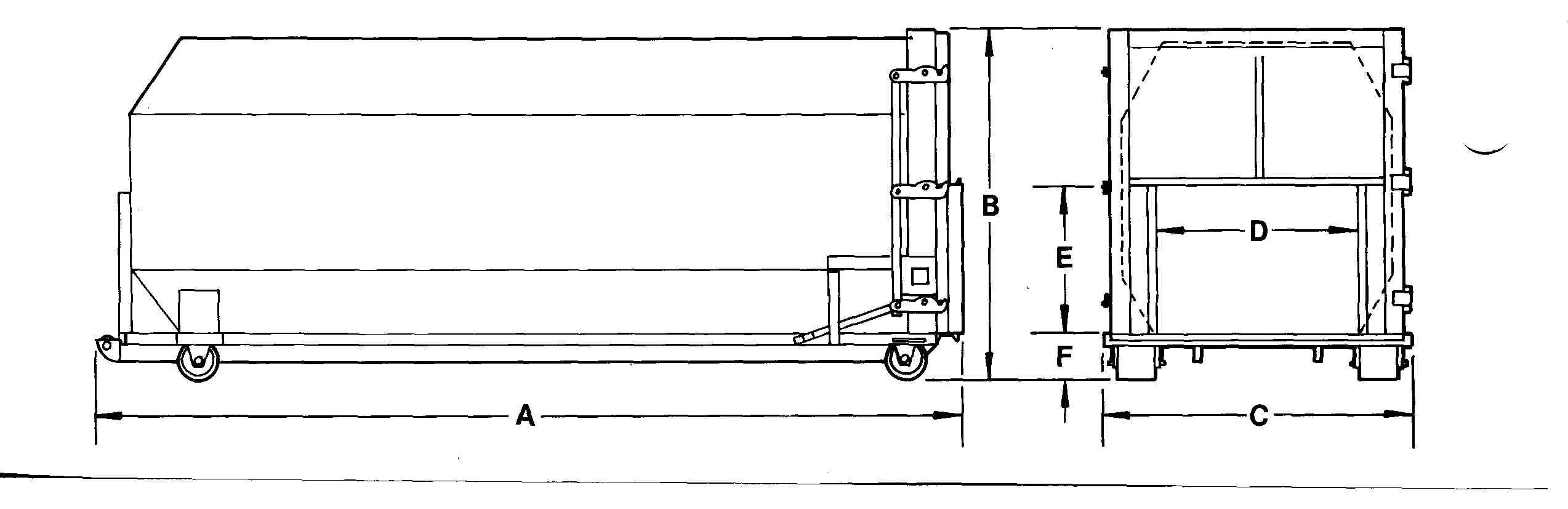

OCTGAON_RECEIVER_DRAWING







SIZE           A         B           C        D         E           F
20 Yd         17' 6"     77"        96"       65"       48"       12"
35 Yd         21' 6"     108"      96"       65"       48"       12"
40 Yd         23' 6"     108"      96"       65"       48"       12"
43 Yd         25' 6"     108"      96"       65"       48"       12"

Offset_hinge_asyPull_HookBul_Nose_and_Rooler

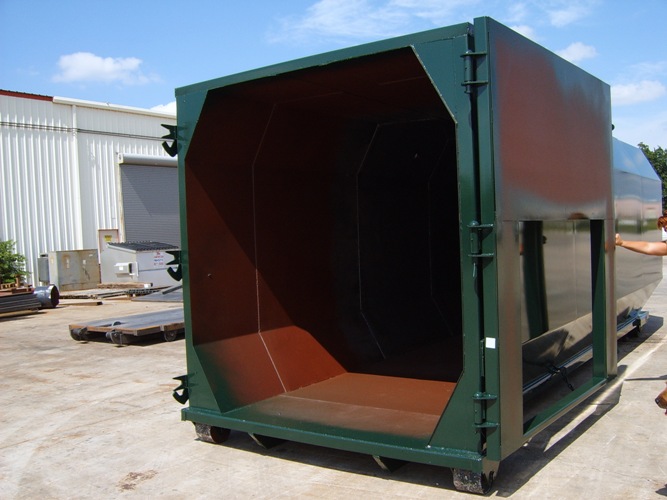

Offset Hinge Assembly      Pull Hook              Bull Nose and Roller

OPTIONAL UNDER-STRUCTURE                 OPTIONAL ACCESSORIES
  • Pal-Lift                                                Walls           3/16"
  • Dempster                                             Main Rails    6" X 2" X 1/4" or                                                                                    6" X 2" X 3/8"
  • Heil Dead Lift                                      Wear Strip  1/4" X 1 1/2"
  • Ampliroll                                               Floor           1/4"
  • Stellar                                                  Sani Tech Ring
  • Swap Loader                                         Cable Pin-Off
STANDARD FEATURES
  • Sides, Bulkhead and Doors        10 Ga. HR Sheet
  • Bump Plate                                3/8"
  • Floor                                         3/16" HR Plate
  • Main Rails                                  6" X 2" X 3/16" Structural Tube
  • Solid Bar Rail Butts                   1 1/4" HR Plate
  • Roller Finger                             3/4 Plate Roller Finger
  • Pull Plate and Pull Hook              Pull Plate (3/4" HR Plt) / Pull Hook                                                   ( 1 1/4" Grd 50 Plt)
  • Cross Members                          18" Centers
  • Gussets                                      (2) Gussets on every other cross                                                             member
  • Wheels                                       (4) 8" with 1 7/8" CR Axles
  • Axles and Hinges                         All axles and hinges have zerk grease fittings
  • Bulkhead Vertical Tube              3 X 2 X 3/16 Structural Tube
  • Latch                                         With Door Guides and Safety Chains
  • Primer                                        Phenolic Modified Industrial Primer
  • Paint Color                                  Per Customer Request
  • ANSI Safety Decals included on all equipment free of charge
hinge_assyPicture_007SUC50431

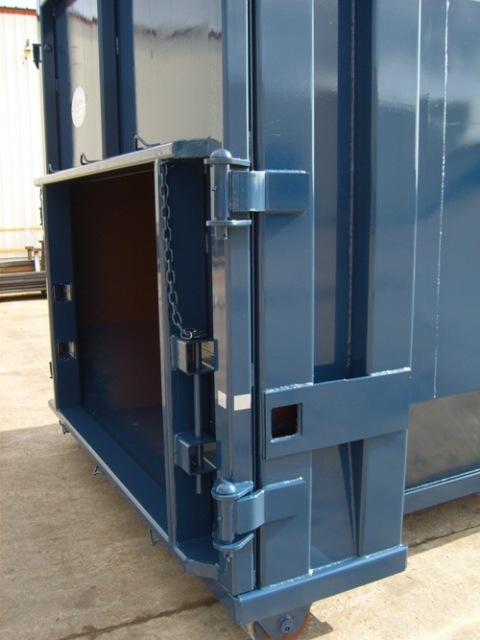

 Latch Assembly
